Specification	AS2.5/4

Color	Gray
Current - IEC	24 A
Current - UL	25 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Number of Levels	1
Number of Positions	4
Stripping Length	11 mm
Terminal Width	5 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	800 V
Voltage - UL	600 V
Wire Gauge or Range - AWG (Max)	22 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	2.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.34 mm²

AS2.5 Series

Part	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Stripping Length	Material - Insulation	Terminal Width	Termination Style	Number of Positions	Voltage - IEC	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Color	Current - UL	Current - IEC	Voltage - UL	Number of Levels	Type
Altech Corporation AS2.5/3/R	0.34 mm²	2.5 mm²	11 mm	Nylon 6/6 PA66 Polyamide	5 mm	Push In Spring	3	800 V	12 AWG	22 AWG	Red	25 A	24 A	600 V	1	Feed Through
Altech Corporation AS2.5/G	0.34 mm²	2.5 mm²	11 mm	Nylon 6/6 PA66 Polyamide	5 mm	Push In Spring	2	800 V	12 AWG	22 AWG	Green	25 A	24 A	600 V	1	Feed Through
Altech Corporation AS2.5/4	0.34 mm²	2.5 mm²	11 mm	Nylon 6/6 PA66 Polyamide	5 mm	Push In Spring	4	800 V	12 AWG	22 AWG	Gray	25 A	24 A	600 V	1	Feed Through
Altech Corporation AS2.5/3/BL	0.34 mm²	2.5 mm²	11 mm	Nylon 6/6 PA66 Polyamide	5 mm	Push In Spring	3	800 V	12 AWG	22 AWG	Black	25 A	24 A	600 V	1	Feed Through

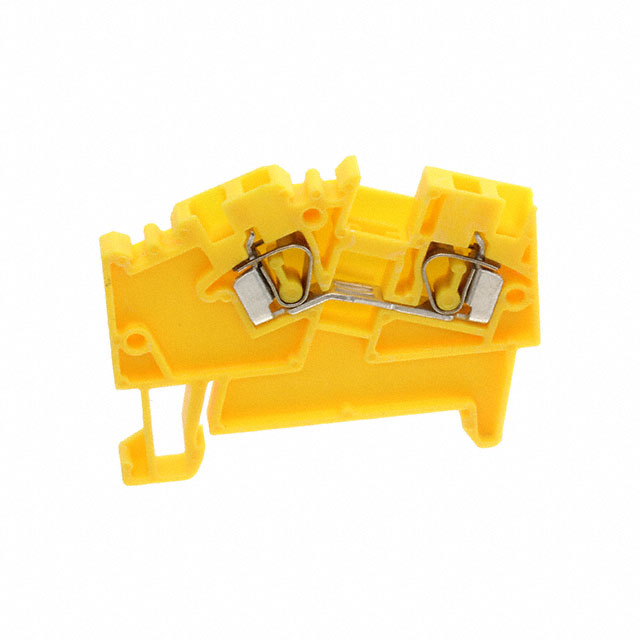

Altech Corporation AS2.5/Y	0.34 mm²	2.5 mm²	11 mm	Nylon 6/6 PA66 Polyamide	5 mm	Push In Spring	2	800 V	12 AWG	22 AWG	Yellow	25 A	24 A	600 V	1	Feed Through
Altech Corporation AS2.5	0.34 mm²	2.5 mm²	11 mm	Nylon 6/6 PA66 Polyamide	5 mm	Push In Spring	2	800 V	12 AWG	22 AWG	Gray	25 A	24 A	600 V	1	Feed Through
Altech Corporation AS2.5/3/BU	0.34 mm²	2.5 mm²	11 mm	Nylon 6/6 PA66 Polyamide	5 mm	Push In Spring	3	800 V	12 AWG	22 AWG	Blue	25 A	24 A	600 V	1	Feed Through
Altech Corporation AS2.5/3	0.34 mm²	2.5 mm²	11 mm	Nylon 6/6 PA66 Polyamide	5 mm	Push In Spring	3	800 V	12 AWG	22 AWG	Gray	25 A	24 A	600 V	1	Feed Through
