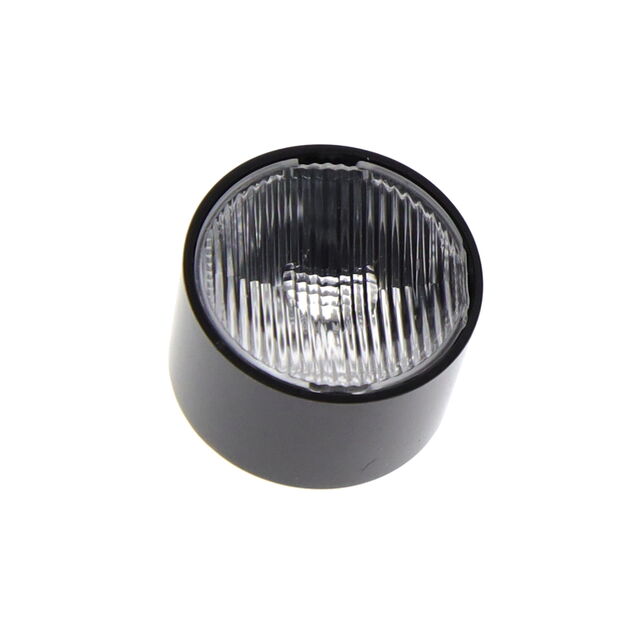

CA18107_TINA-Y-O

Active

LEDiL

ASSEMBLY 1 POS MM (D)/ 4 [TAPE SHEET] ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDiL

ASSEMBLY 1 POS MM (D)/ 4 [TAPE SHEET] ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	CA18107_TINA-Y-O

Color	Clear
For Use With/Related Manufacturer	Seoul, Osram, Lumileds, Samsung, Cree, Nichia
Lens Size [diameter]	16.1 mm
Material	Acrylic
Mounting Type	Adhesive Tape
Number of LEDs	1
Optical Pattern	Medium
Type	Lens With Holder
Viewing Angle [Max]	52 °
Viewing Angle [Min]	15 °

Part	Type	Viewing Angle [Max]	Viewing Angle [Min]	Number of LEDs	Optical Pattern	Lens Size [diameter]	Mounting Type	For Use With/Related Manufacturer	Color	Material
LEDiL CA18107_TINA-Y-O	Lens With Holder	52 °	15 °	1	Medium	16.1 mm	Adhesive Tape	Cree Lumileds Nichia Osram Samsung Seoul	Clear	Acrylic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens With Holder Clear 15° ~ 52° Medium Adhesive Tape
