AMP - TE CONNECTIVITY 5415025-1

5415025-1

Active
TE Connectivity AMP Connectors

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE, 50 OHM

Find alt
AMP - TE CONNECTIVITY 5415025-1

5415025-1

Active
TE Connectivity AMP Connectors

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE, 50 OHM

Find alt

Description

General part information

5415025 Series

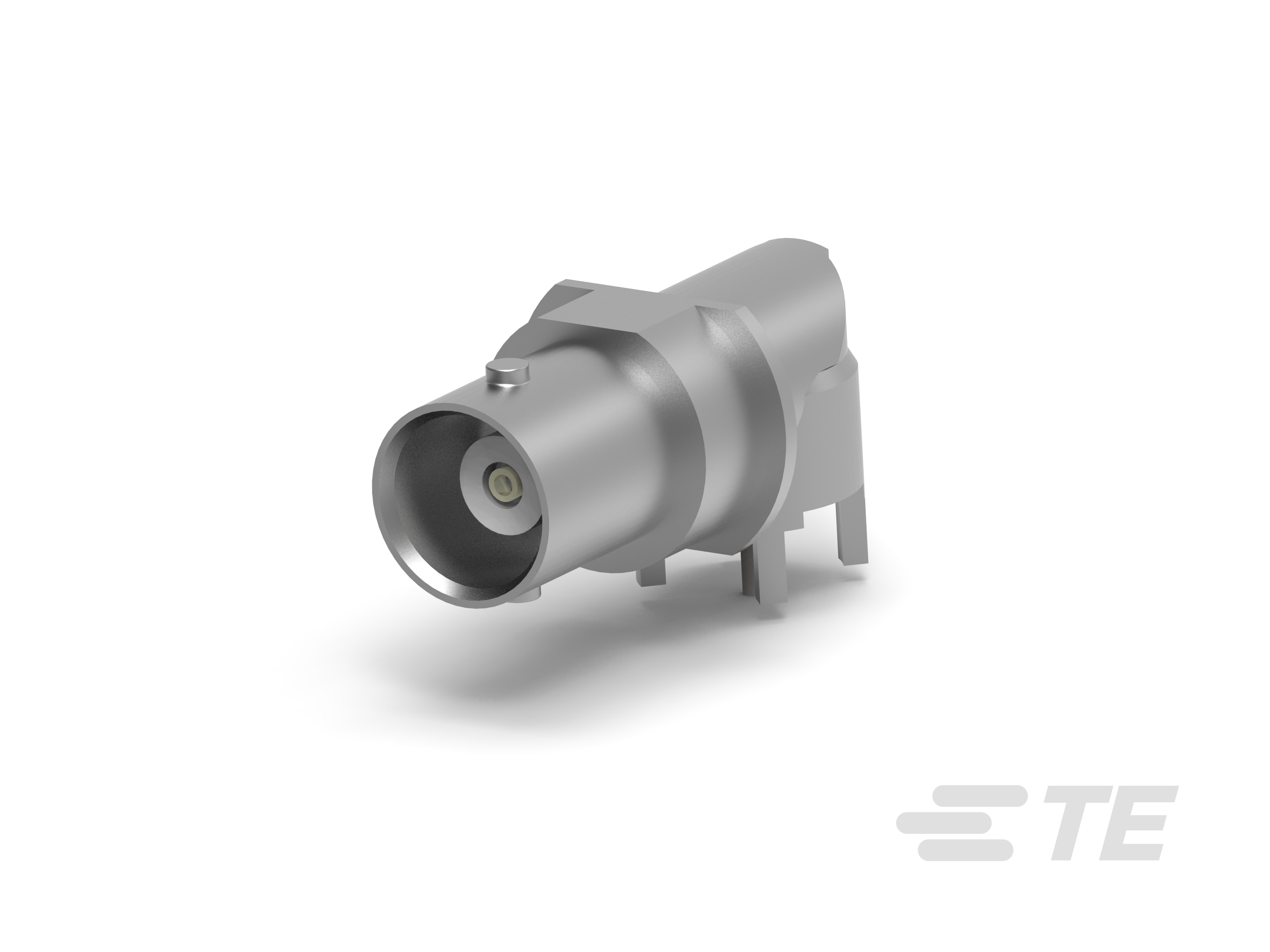

The 5415025-1 is a through-hole BNC Right Angle Jack for use with panel, printed circuit board (PCB). It has tin-plated zinc body with gold-plated phosphor bronze centre contact and a polymethylpentene (PTFE) insulator.

Technical Specifications

Parameters and characteristics for this part

Specification5415025-1
Center Contact MaterialPhosphor Bronze
Connector StyleBNC
Connector TypeJack, Female Socket
Contact TerminationSolder
Fastening TypeBayonet Lock
Frequency - Max4 GHz
Housing ColorSilver
Impedance50 Ohm
Mounting FeatureBulkhead, Front Side Nut
Mounting TypePanel Mount, Through Hole, Right Angle
Number of Ports1
Shield TerminationSolder
