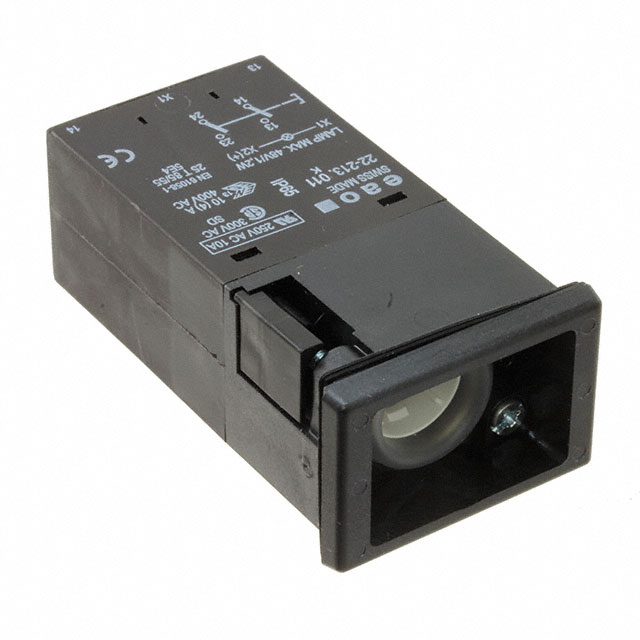

22-213.011

Active

EAO

SWITCH PB DPST-NO 10A 400V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO 10A 400V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	22-213.011	22-213 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)	Rectangular, Button (Not Included)
Circuit	DPST-NO	DPST-NO
Current Rating (Amps)	10 A	10 A
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [x]	30 mm	30 mm
Panel Cutout Dimensions [y]	22 mm	22 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Screw Terminal	Quick Connect - 0.250" (6.3mm), Screw Terminal
Type	Standard	Standard
Voltage Rating - AC	400 V	400 V

SWITCH PB DPST-NO 10A 400V

Part	Actuator Marking	Current Rating (Amps)	Mounting Type	Ingress Protection	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Circuit	Mechanical Life	Voltage Rating - AC	Termination Style
EAO 22-213.014	No Marking	10 A	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	Rectangular, Button (Not Included)	30 mm	22 mm	Standard	-25 °C	85 °C	Off-Mom	DPST-NO	1000000 Cycles	400 V	Quick Connect - 0.250" (6.3mm)
EAO 22-213.011	No Marking	10 A	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	Rectangular, Button (Not Included)	30 mm	22 mm	Standard	-25 °C	85 °C	Off-Mom	DPST-NO	1000000 Cycles	400 V	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO Standard Panel Mount, Front
