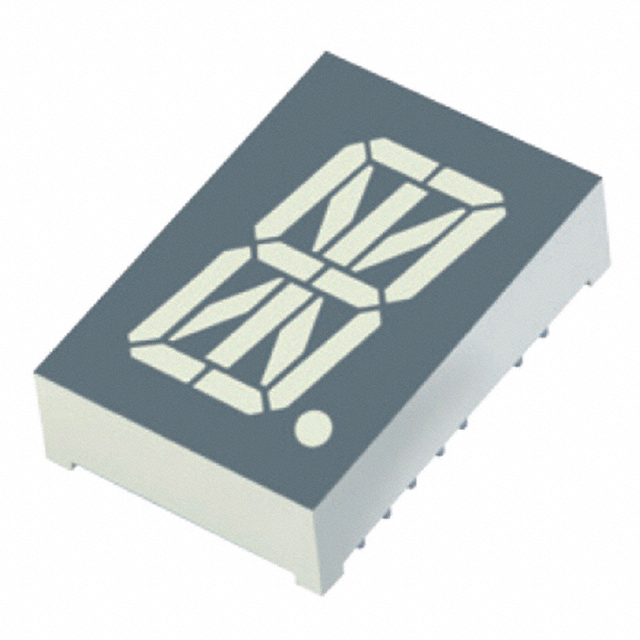

XAUR20C

Active

SunLED

DISPLAY 16SEG 0.8" SGL RED 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XAUR20C

Active

SunLED

DISPLAY 16SEG 0.8" SGL RED 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XAUR20C

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	20.32 mm
Digit/Alpha Size	0.8 in
Display Type	16-Segment, Alphanumeric
Millicandela Rating	2 mcd
Number of Characters [custom]	1
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	18-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	27.7 mm
Size / Dimension [x]	1.091 in
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.787 in
Size / Dimension [z]	0.335 "
Size / Dimension [z]	8.5 mm
Voltage - Forward (Vf) (Typ)	1.9 V
Wavelength - Peak	627 nm

XAUR20 Series

DISPLAY 16SEG 0.8" SGL RED 18DIP

Part	Current - Test	Common Pin	Color	Number of Characters [custom]	Power Dissipation (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Display Type	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Package / Case
SunLED XAUR20C	10 mA	Common Cathode	Red	1	75 mw	20 mm	27.7 mm	0.335 "	0.787 in	1.091 in	8.5 mm	16-Segment, Alphanumeric	20.32 mm	0.8 in	2 mcd	627 nm	1.9 V	15.24 mm	0.6 in	18-DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XAUR20 Series

Display Modules - LED Character and Numeric Red 16-Segment, Alphanumeric 1 Character Common Cathode 1.9V 10mA 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) 18-DIP (0.600", 15.24mm)
