Technical Specifications
Parameters and characteristics for this part
| Specification | TSB612IDT |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 5 nA |
| Current - Output / Channel [custom] | 70 mA |
| Current - Supply | 103 µA |
| Gain Bandwidth Product | 560 kHz |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Rail-to-Rail |
| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Qualification | AEC-Q100 |
| Slew Rate | 0.2 V/µs |
| Supplier Device Package | 8-SO |
| Voltage - Input Offset | 1 mV |
| Voltage - Supply Span (Max) [Max] | 36 V |
| Voltage - Supply Span (Min) [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.39 | |
| 10 | $ 1.24 | |||
| 25 | $ 1.18 | |||
| 100 | $ 0.97 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 1.39 | ||
| 10 | $ 1.24 | |||
| 25 | $ 1.18 | |||
| 100 | $ 0.97 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.63 | |||
| Tape & Reel (TR) | 2500 | $ 0.59 | ||
| 5000 | $ 0.56 | |||
| 12500 | $ 0.54 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.16 | |
| 10 | $ 0.76 | |||
| 25 | $ 0.71 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.58 | |||
Description
General part information

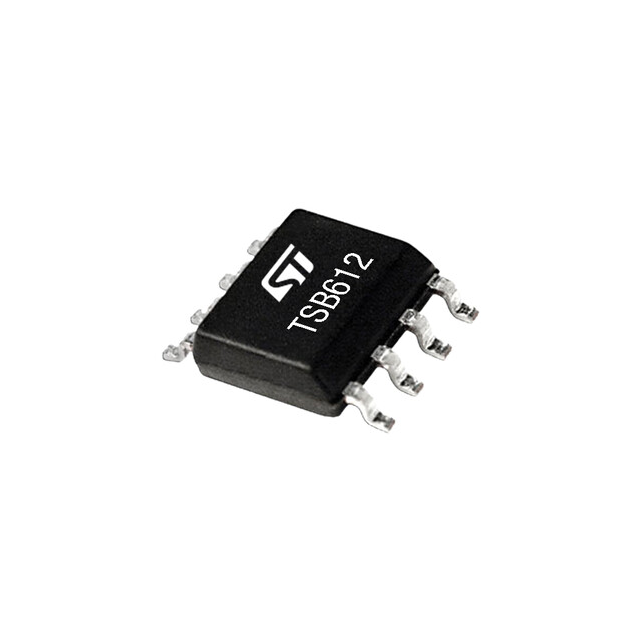

TSB612 Series
The TSB611, TSB612 operational amplifiers (op amps) offer an extended supply voltage operating range and rail-to-rail output. They also offer an excellent speed/power consumption ratio with 560 kHz gain bandwidth product while consuming less than 125 μA per amplifier at 36 V supply voltage.
The TSB611, TSB612 operate over a wide temperature range from -40 °C to 125°C making this device ideal for industrial and automotive applications.
Thanks to their small package size, the TSB611, TSB612 can be used in applications where space on the board is limited. They can thus reduce the overall cost of the PCB.
