LRSA1008-2430-900

Active

Bel Power Solutions

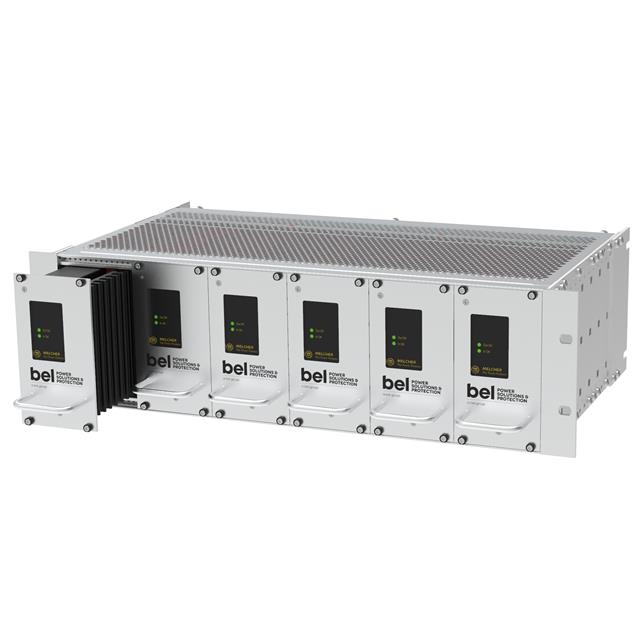

RACK MOUNT POWER SUPPLIES POWER 480W OUTPUT 24/30VDC INPUT 90-264VAC

Search across all available documentation for this part.

Active

Bel Power Solutions

RACK MOUNT POWER SUPPLIES POWER 480W OUTPUT 24/30VDC INPUT 90-264VAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LRSA1008-2430-900	LRSA Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cCSAus	CE, cCSAus
Current - Output 1	10 A	10 - 24 A
Current - Output 2	8 A	8 - 24 A
Efficiency	92 %	92 %
Features	PFC, Hot Swappable, Universal Input, Adjustable Output, Load Sharing, Remote On/Off	PFC, Hot Swappable, Universal Input, Adjustable Output, Load Sharing, Remote On/Off
Mounting Type	Rack Mount	Rack Mount
Number of Outputs	2	2
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	480 W	480 - 1440 W
Size / Dimension [x]	435.8 mm	435.8 mm
Size / Dimension [x]	17.16 "	17.16 "
Size / Dimension [y]	10.35 "	10.35 "
Size / Dimension [y]	263 mm	263 mm
Size / Dimension [z]	5.22 in	5.22 in
Size / Dimension [z]	132.6 mm	132.6 mm
Standard Number	62368-1	62368-1
Type	Enclosed	Enclosed
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	24 V	12 - 30 V
Voltage - Output 2	30 V	15 - 30 V

Rack Mount Power Supplies Power 480W Output 12/15VDC Input 90-264VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Current - Output 1	Features	Efficiency	Approval Agency	Voltage - Output 1	Current - Output 2	Voltage - Output 2	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Voltage - Isolation	Type	Number of Outputs	Mounting Type
Bel Power Solutions LRSA2016-1215-900	-40 °C	71 °C	ITE (Commercial)	20 A	Adjustable Output, Hot Swappable, Load Sharing, PFC, Remote On/Off, Universal Input	92 %	CE, cCSAus	12 V	16 A	15 V	90 VAC	264 VAC	62368-1	435.8 mm	10.35 "	17.16 "	5.22 in	132.6 mm	263 mm	480 W	3000 V	Enclosed	2	Rack Mount
Bel Power Solutions LRSA2424-3030-901	-40 °C	71 °C	ITE (Commercial)	24 A	Adjustable Output, Hot Swappable, Load Sharing, PFC, Remote On/Off, Universal Input	92 %	CE, cCSAus	30 V	24 A	30 V	90 VAC	264 VAC	62368-1	435.8 mm	10.35 "	17.16 "	5.22 in	132.6 mm	263 mm	1440 W	3000 V	Enclosed	2	Rack Mount
Bel Power Solutions LRSA1008-2430-900	-40 °C	71 °C	ITE (Commercial)	10 A	Adjustable Output, Hot Swappable, Load Sharing, PFC, Remote On/Off, Universal Input	92 %	CE, cCSAus	24 V	8 A	30 V	90 VAC	264 VAC	62368-1	435.8 mm	10.35 "	17.16 "	5.22 in	132.6 mm	263 mm	480 W	3000 V	Enclosed	2	Rack Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rack Mount Power Supplies Power 480W Output 12/15VDC Input 90-264VAC
