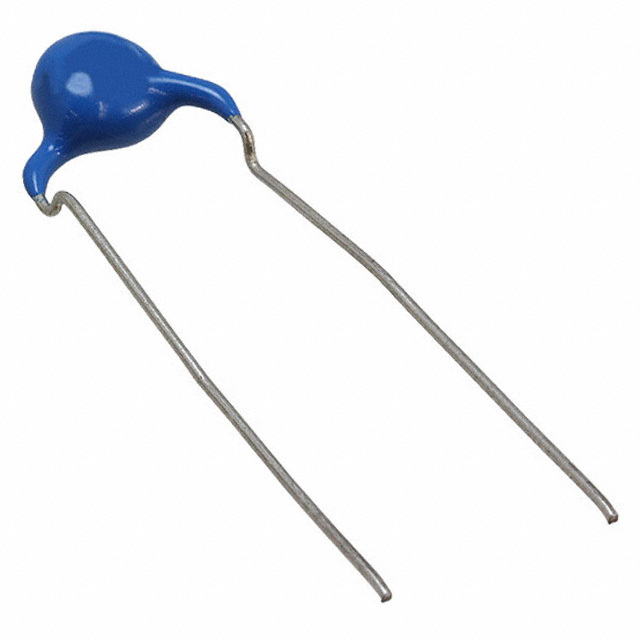

C911U152MUVDBA7317

Active

KEMET

CAP CER 1500PF 400VAC Y5U RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Technical Data Sheet EN +4

C911U152MUVDBA7317

Active

KEMET

CAP CER 1500PF 400VAC Y5U RADIAL

Deep-Dive with AI

DocumentsProduct Change Notice EN Technical Data Sheet EN +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C911U152MUVDBA7317

Applications	Safety
Capacitance	1500 pF
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings	Y1, X1
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Temperature Coefficient	Y5U (E)
Tolerance	20 %
Voltage - Rated	400 VAC

C911U Series

...

Part	Applications	Temperature Coefficient	Lead Spacing	Lead Spacing	Package / Case	Capacitance	Mounting Type	Voltage - Rated	Tolerance	Ratings	Lead Style	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ratings [custom]	Ratings [custom]
KEMET C911U560JUSDAA7317	Safety	SL	0.394 in	10 mm	Disc Radial	56 pF	Through Hole	400 VAC	5 %	X1 Y1	Straight	0.315 "	8 mm	125 °C	-40 °C
KEMET C911U750JZSDBAWL35	Safety	SL	0.394 in	10 mm	Disc Radial	75 pF	Through Hole	440 VAC	5 %		Formed Leads - Kinked	0.315 "	8 mm	125 °C	-40 °C	2	1
KEMET C911U620JYSDCA7317	Safety	SL	0.394 in	10 mm	Disc Radial	62 pF	Through Hole	400 VAC	5 %		Formed Leads - Kinked	0.315 "	8 mm	125 °C	-40 °C	2	1
KEMET C911U471KUYDBAWL35	Safety	Y5P (B)	0.394 in	10 mm	Disc Radial	470 pF	Through Hole	400 VAC	10 %	X1 Y1	Formed Leads - Kinked	0.315 "	8 mm	125 °C	-40 °C
KEMET C911U680JZSDAAWL20	Safety	SL	0.394 in	10 mm	Disc Radial	68 pF	Through Hole	440 VAC	5 %		Straight	0.315 "	8 mm	125 °C	-40 °C	2	1
KEMET C911U471KUYDCA7317	Safety	Y5P (B)	0.394 in	10 mm	Disc Radial	470 pF	Through Hole	400 VAC	10 %	X1 Y1	Formed Leads - Kinked	0.315 "	8 mm	125 °C	-40 °C
KEMET C911U152MUVDBA7317	Safety	Y5U (E)	0.394 in	10 mm	Disc Radial	1500 pF	Through Hole	400 VAC	20 %	X1 Y1	Formed Leads - Kinked	0.315 "	8 mm	125 °C	-40 °C
KEMET C911U560JVSDAA7317	Safety	SL	0.394 in	10 mm	Disc Radial	56 pF	Through Hole	400 VAC	5 %	X1 Y1	Straight	0.315 "	8 mm	125 °C	-40 °C
KEMET C911U470JUSDAAWL20	Safety	SL	0.394 in	10 mm	Disc Radial	47 pF	Through Hole	400 VAC	5 %	X1 Y1	Straight	0.315 "	8 mm	125 °C	-40 °C
KEMET C911U750JZSDAAWL45	Safety	SL	0.394 in	10 mm	Disc Radial	75 pF	Through Hole	440 VAC	5 %		Straight	0.315 "	8 mm	125 °C	-40 °C	2	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.41
	Tape & Box (TB)	10000	$ 0.09
Newark	Each (Supplied on Full Reel)	10000	$ 0.10
		20000	$ 0.09
		30000	$ 0.08
		50000	$ 0.07

Description

General part information

C911U Series

1500 pF ±20% 400VAC Ceramic Capacitor Y5U (E) Radial, Disc
