103166-4
ActiveTE Connectivity AMP Connectors

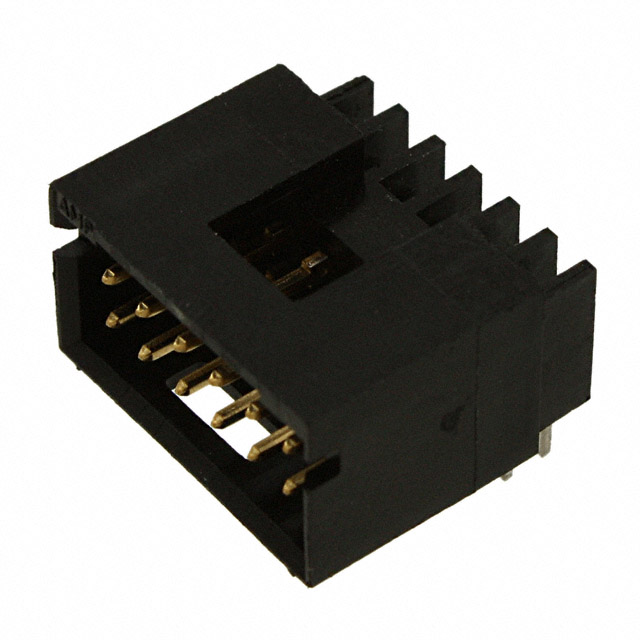

CONN HEADER R/A 12POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
103166-4
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 12POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 103166-4 | 103166 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating [x] | 0.318 " | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post [x] | 0.135 in | 0.135 in |
| Contact Length - Post [x] | 3.43 mm | 3.43 mm |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Detent Lock | Detent Lock |
| Insulation Color | Black | Black |
| Insulation Height | 0.4 in | 0.4 in |
| Insulation Height | 10.16 mm | 10.16 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 12 | 6 - 50 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
103166 Series
CONN HEADER R/A 50POS 2.54MM
| Part | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Contact Type | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Number of Positions Loaded | Mounting Type | Contact Finish - Mating | Contact Length - Mating [x] | Contact Length - Mating [x] | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Number of Rows | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Termination | Number of Positions | Material Flammability Rating | Connector Type | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Material | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 7-103166-3 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin | Solder | 50 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 6-103166-3 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin | Solder | 30 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 103166-8 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin-Lead | Solder | 20 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 103166-1 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin-Lead | Solder | 6 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 1-103166-0 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin-Lead | Solder | 24 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 5-103166-8 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin | Solder | 20 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 2-103166-3 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin-Lead | Solder | 50 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 6-103166-5 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin | Solder | 34 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 1-103166-1 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin-Lead | Solder | 26 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 5-103166-5 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin | Solder | 14 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 5-103166-4 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin | Solder | 12 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 5-103166-2 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin | Solder | 8 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 103166-7 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin-Lead | Solder | 18 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 1-103166-8 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin-Lead | Solder | 40 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 103166-4 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin-Lead | Solder | 12 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 5-103166-3 | 2.54 mm | 0.1 in | Board to Board, Cable | Male Pin | Black | 2.54 µm | 100 µin | Thermoplastic | All | Through Hole, Right Angle | Gold | 0.318 " | 8.08 mm | 0.4 in | 10.16 mm | -65 ░C | 105 ░C | 3 A | 30 Áin | 0.76 Ám | Detent Lock | 2 | 0.135 in | 3.43 mm | Tin | Solder | 10 | UL94 V-0 | Header | 0.1 in | 2.54 mm | Square | Phosphor Bronze | Shrouded - 4 Wall |
Description
General part information
103166 Series
Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
