AZ979-1A-12DE

Active

American Zettler

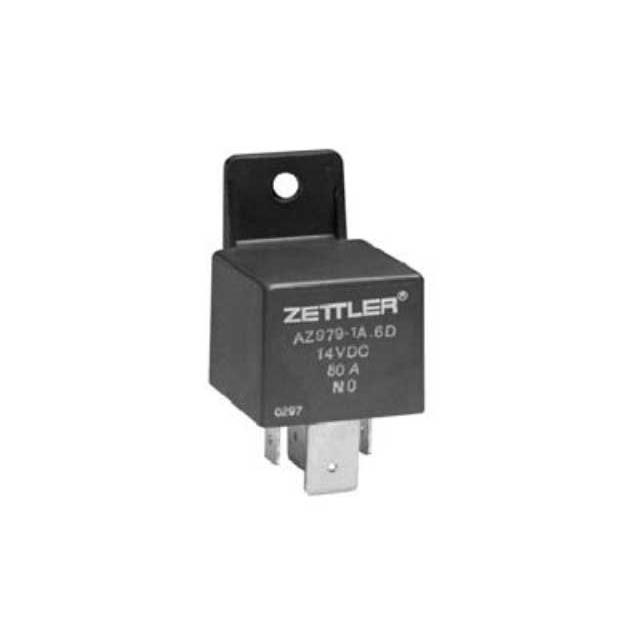

RELAY AUTOMOTIVE SPST 80A 12V

Search across all available documentation for this part.

Active

American Zettler

RELAY AUTOMOTIVE SPST 80A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZ979-1A-12DE	AZ979 Series

Coil Current	133.3 mA	133.3 mA
Coil Power	1.6 W	1.6 W
Coil Resistance	90 Ohms	90 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 VDC
Contact Form	SPST-NO (1 Form A)	SPDT (1 Form C), SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	80 A	60 - 80 A
Features	SUPER-ISO w/ Plastic Mounting Bracket, Sealed - Epoxy	SUPER-ISO w/ Plastic Mounting Bracket, Sealed - Epoxy
Mounting Type	Chassis Mount	Chassis Mount
Must Operate Voltage	7.8 VDC	7.8 VDC
Must Release Voltage	1.2 VDC	1.2 VDC
Operate Time	7 ms	7 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	5 ms	5 ms
Switching Voltage	30 VDC	30 VDC
Termination Style	Plug In, Multiple Sizes, Quick Connect	Plug In, Multiple Sizes, Quick Connect

RELAY AUTOMOTIVE SPDT 60A 12V

Part	Release Time	Switching Voltage	Coil Power	Coil Resistance	Coil Current	Coil Type	Contact Rating (Current)	Contact Material	Termination Style	Operate Time	Contact Form	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Features	Must Operate Voltage	Must Release Voltage	Mounting Type
American Zettler AZ979-1C-12DE	5 ms	30 VDC	1.6 W	90 Ohms	133.3 mA	Non Latching	60 A	Silver Tin Oxide (AgSnO)	Multiple Sizes, Plug In, Quick Connect	7 ms	SPDT (1 Form C)	12 VDC	85 °C	-40 °C	Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket	7.8 VDC	1.2 VDC	Chassis Mount
American Zettler AZ979-1A-12DE	5 ms	30 VDC	1.6 W	90 Ohms	133.3 mA	Non Latching	80 A	Silver Tin Oxide (AgSnO)	Multiple Sizes, Plug In, Quick Connect	7 ms	SPST-NO (1 Form A)	12 VDC	85 °C	-40 °C	Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket	7.8 VDC	1.2 VDC	Chassis Mount
