Q-2H02H0001072i

Active

Amphenol Custom Cable

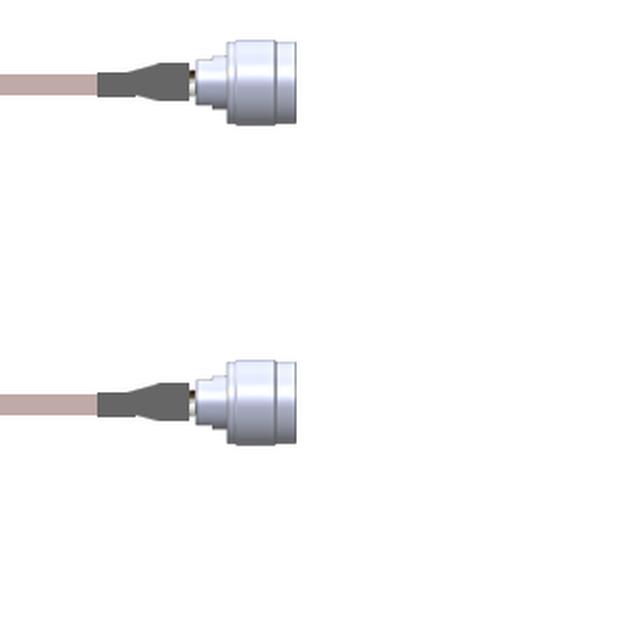

CBL ASSY NTYPE PLUG TO PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H02H0001072i

Active

Amphenol Custom Cable

CBL ASSY NTYPE PLUG TO PLUG 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H02H0001072i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2H02H0 Series

Part	2nd Contact Gender	2nd Connector	Color	Style	Length	Length	Length	1st Connector Mounting Type	Cable Type	Frequency - Max [Max]	Overall Impedance	Features	1st Contact Gender	2nd Connector Mounting Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2H02H0001108i	Male	N-Type Plug	Copper	N-Type to N-Type	2.7 m	9 ft	108 in	Free Hanging (In-Line)	RG-178	11 GHz	50 Ohms	Shielded	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2H02H00011.5M	Male	N-Type Plug	Copper	N-Type to N-Type	1.5 m	4.9 ft	59.1 in	Free Hanging (In-Line)	RG-178	11 GHz	50 Ohms	Shielded	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2H02H0001036i	Male	N-Type Plug	Copper	N-Type to N-Type	91.44 cm		36 in	Free Hanging (In-Line)	RG-178	11 GHz	50 Ohms	Shielded	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2H02H0001009i	Male	N-Type Plug	Copper	N-Type to N-Type	228.6 mm		9 "	Free Hanging (In-Line)	RG-178	11 GHz	50 Ohms	Shielded	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2H02H0001072i	Male	N-Type Plug	Copper	N-Type to N-Type	1.8 m	6 ft	72 in	Free Hanging (In-Line)	RG-178	11 GHz	50 Ohms	Shielded	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2H02H0001.75M	Male	N-Type Plug	Copper	N-Type to N-Type	750 mm		29.53 "	Free Hanging (In-Line)	RG-178	11 GHz	50 Ohms	Shielded	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2H02H0001006i	Male	N-Type Plug	Copper	N-Type to N-Type	152.4 mm		6 in	Free Hanging (In-Line)	RG-178	11 GHz	50 Ohms	Shielded	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-2H02H0001018i	Male	N-Type Plug	Copper	N-Type to N-Type				Free Hanging (In-Line)	RG-178	11 GHz	50 Ohms	Shielded	Male	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2H02H0001.25M	Male	N-Type Plug	Copper	N-Type to N-Type				Free Hanging (In-Line)	RG-178	11 GHz	50 Ohms	Shielded	Male	Free Hanging (In-Line)		250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 75.86
		25	$ 74.51
		50	$ 73.17
		100	$ 71.82
		250	$ 70.47

Description

General part information

Q-2H02H0 Series

Cable Assembly Coaxial N-Type to N-Type RG-178 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
