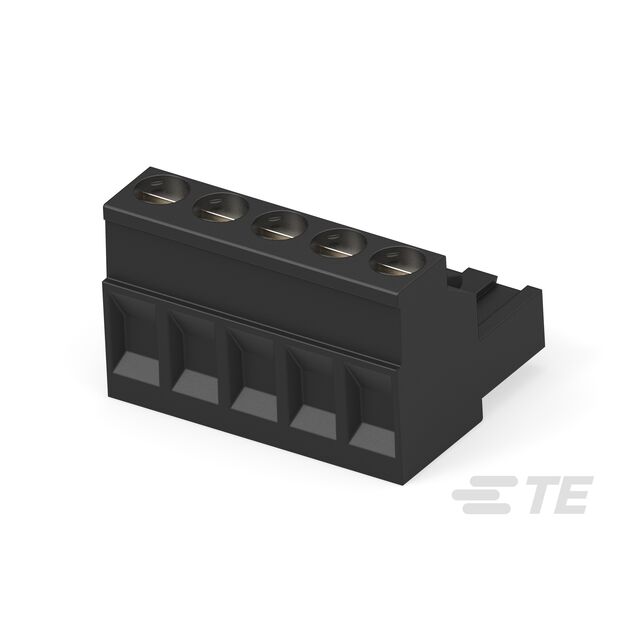

TERM BLOCK PLUG 5POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796641-5

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 5POS STR 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.43
		10	$ 3.67
		25	$ 3.41
		50	$ 3.22
		100	$ 3.04
		250	$ 2.83
		500	$ 2.67
		1000	$ 2.53

Description

General part information

796641 Series

5 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Specification	796641-5	796641 Series

Color	Black	Black
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Features	Side Stacking, Retention Latches (Non-Wire Side)	Side Stacking, Retention Latches (Non-Wire Side)
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	2 - 18
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	5	2 - 18
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	3 mm˛
Wire Gauge or Range - mm˛	-	0.05 mm˛
Wire Gauge or Range - mm² [Max]	3 mm²	3 mm²
Wire Gauge or Range - mm² [Min]	0.05 mm²	0.05 mm²
Wire Strip Length [Max]	7.5 mm	7.5 mm
Wire Strip Length [Min]	6 mm	6 mm
