Q-6903Q00080.5M

Active

Amphenol Custom Cable

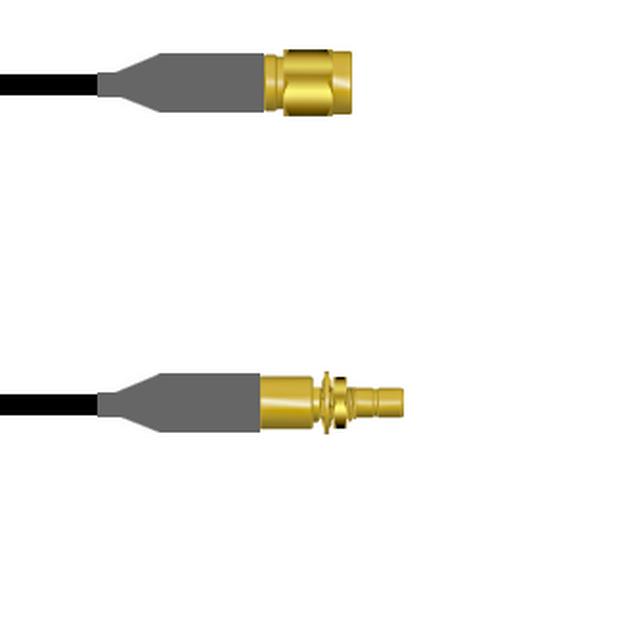

CBL ASSY RPSMA-SMB PL-JK 19.69"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY RPSMA-SMB PL-JK 19.69"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-6903Q00080.5M

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	RP-SMA to SMB

CBL ASSY RPSMA-SMB PL-JK 19.69"

Part	1st Connector Mounting Type	2nd Connector Mounting Type	1st Connector	2nd Contact Gender	Cable Type	Cable Impedance	Style	Connector Impedance	2nd Connector	Overall Impedance	2nd Connector Mounting Feature	1st Contact Gender	Frequency - Max [Max]	Length	Length	Features	Color
Amphenol Custom Cable Q-6903Q00080.5M	Free Hanging (In-Line)	Panel Mount	RP-SMA Plug	Male	RG-58	50 Ohms	RP-SMA to SMB	50 Ohms	SMB Jack	50 Ohms	Bulkhead - Front Side Nut	Female	1 GHz	50 cm	19.69 "	Shielded	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to SMB RG-58 19.69" (500.00mm)
