EX-26A-PN
ActivePanasonic Industrial Automation Sales

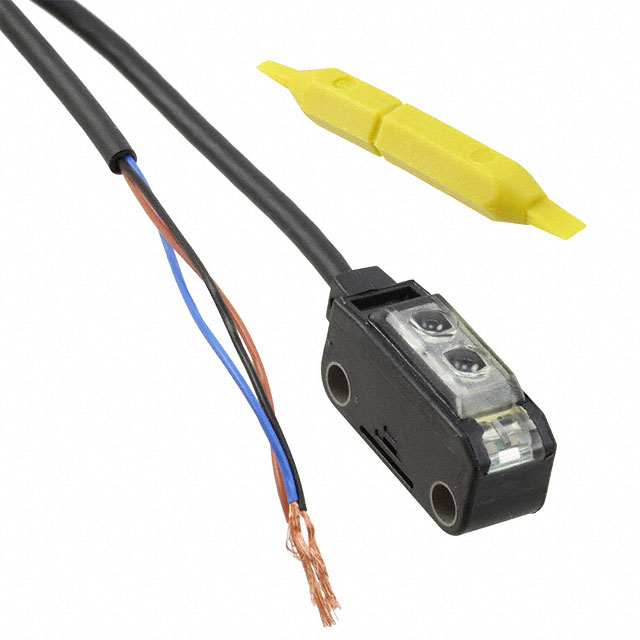

SENSOR REFLECTIVE 14MM PNP
EX-26A-PN
ActivePanasonic Industrial Automation Sales
SENSOR REFLECTIVE 14MM PNP
Description
General part information
EX-26 Series
Reflective, Convergent Optical Sensor 0.236" ~ 0.551" (6mm ~ 14mm) PNP - Open Collector/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | EX-26A-PN |
|---|---|
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON, PNP - Open Collector |
| Response Time | 500 µs |
| Sensing Distance Maximum | 0.551 " |
| Sensing Distance Minimum | 0.236 " |
| Sensing Method | Convergent, Reflective |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
