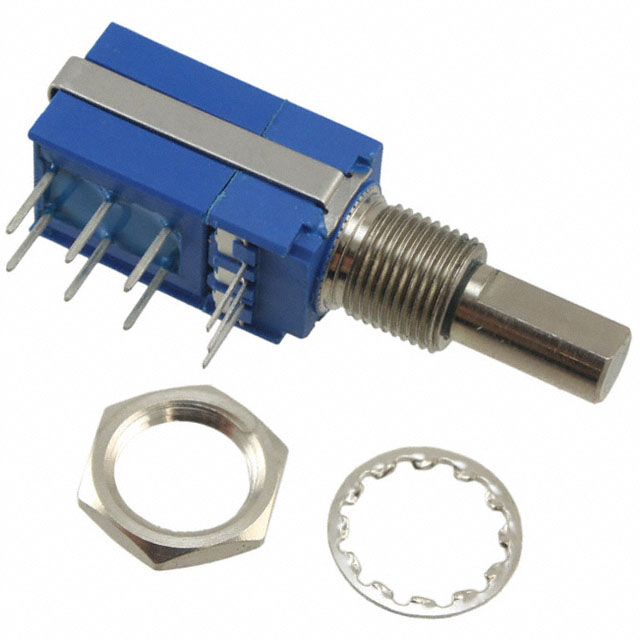

Specification	54AAD-C28-B13/P50L

Actuator Diameter	6.35 mm
Actuator Length	0.875 in
Actuator Type	Flatted
Adjustment Type	Side Adjustment
Built in Switch	Push-Pull, DPDT
Bushing Thread	3/8-32
Mounting Type	Panel Mount
Number of Gangs	1
Number of Turns	1 turns
Power (Watts)	500 mW
Power (Watts) Options	1/2W
Resistance	5 kOhm
Resistive Material	Conductive Plastic
Rotation	290 °
Size - Body Face Length	0.521 in
Size - Body Face Width	0.492 in
Size - Body Shape	Rectangular
Taper	Linear
Temperature Coefficient	1000 ppm/°C
Temperature Coefficient (Highest)	1000 ppm/°C
Temperature Coefficient (Lowest)	-1000 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

54AAD Series

Part	Tolerance	Adjustment Type	Bushing Thread	Actuator Length	Actuator Diameter	Temperature Coefficient (Highest)	Temperature Coefficient	Temperature Coefficient (Lowest)	Rotation	Mounting Type	Size - Body Shape	Size - Body Face Length	Size - Body Face Width	Built in Switch	Taper	Termination Style	Number of Turns	Resistive Material	Number of Gangs	Resistance	Power (Watts)	Power (Watts) Options	Actuator Type
Bourns Inc. 54AAD-C28-B13/P50L	20 %	Side Adjustment	3/8-32	0.875 in	6.35 mm	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	290 °	Panel Mount	Rectangular	0.521 in	0.492 in	DPDT Push-Pull	Linear	PC Pins	1 turns	Conductive Plastic	1	5 kOhm	500 mW	1/2W	Flatted
Bourns Inc. 54AAD-C28-B15/P50L	20 %	Side Adjustment	3/8-32	0.875 in	6.35 mm	1000 ppm/°C	1000 ppm/°C	-1000 ppm/°C	290 °	Panel Mount	Rectangular	0.521 in	0.492 in	DPDT Push-Pull	Linear	PC Pins	1 turns	Conductive Plastic	1	10 kOhm	500 mW	1/2W	Flatted
