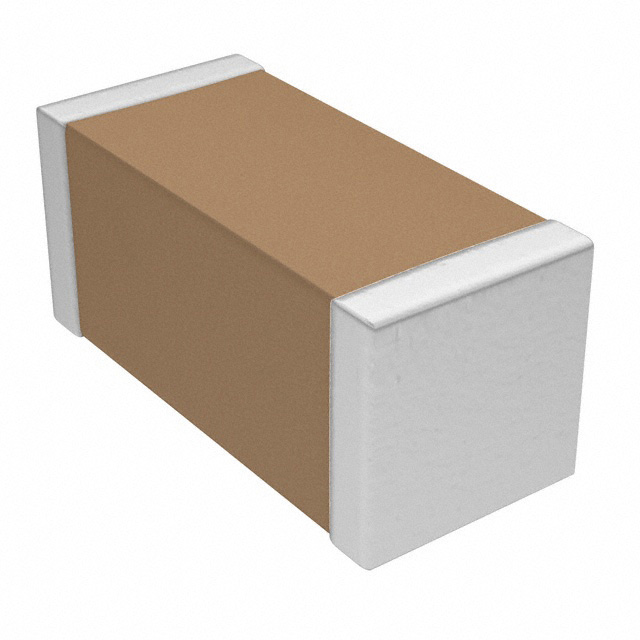

CDR03BX333BMURAT

Active

Vishay Vitramon

CAP CER 0.033UF 100V BX 1808

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDR03BX333BMURAT

Active

Vishay Vitramon

CAP CER 0.033UF 100V BX 1808

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CDR03 Series

0.033 µF ±20% 100V Ceramic Capacitor BX 1808 (4520 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDR03BX333BMURAT	CDR03 Series

Applications	High Reliability	High Reliability
Capacitance	0.033 çF	0.001 - 330 pF
Failure Rate	R (0.01%)	S (0.001%), R (0.01%)
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1808	1808
Package / Case	4520 Metric	4520 Metric
Size / Dimension [x]	0.18 "	0.18 "
Size / Dimension [x]	4.57 mm	4.57 mm
Size / Dimension [y]	0.08 "	0.08 "
Size / Dimension [y]	2.03 mm	2.03 mm
Temperature Coefficient	BX	BP, BX
Thickness (Max) [Max]	0.08 in	0.08 in
Thickness (Max) [Max]	2.03 mm	2.03 mm
Tolerance	20 %	5 - 20 %
Voltage - Rated	100 V	50 - 100 V

CDR03 Series

CAP CER 330PF 100V BP 1808

Part	Voltage - Rated	Capacitance	Applications	Failure Rate	Tolerance	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Package / Case	Temperature Coefficient
Vishay Vitramon CDR03BP331BKWSAB	100 V	330 pF	High Reliability	S (0.001%)	10 %	MLCC, Surface Mount	0.08 "	2.03 mm	0.18 "	4.57 mm	-55 °C	125 °C	0.08 in	2.03 mm	1808	4520 Metric	BP
Vishay Vitramon CDR03BX683AKURAJ	50 VDC	0.068 µF	High Reliability	R (0.01%)	10 %	MLCC, Surface Mount	0.08 "	2.03 mm	0.18 "	4.57 mm	-55 °C	125 °C	0.08 in	2.03 mm	1808	4520 Metric	BX
Vishay Vitramon CDR03BP102BJMSAR	100 V	0.001 µF	High Reliability	S (0.001%)	5 %	MLCC, Surface Mount	0.08 "	2.03 mm	0.18 "	4.57 mm	-55 °C	125 °C	0.08 in	2.03 mm	1808	4520 Metric	BP
Vishay Vitramon CDR03BX333BMURAT	100 V	0.033 çF	High Reliability	R (0.01%)	20 %	MLCC, Surface Mount	0.08 "	2.03 mm	0.18 "	4.57 mm	-55 °C	125 °C	0.08 in	2.03 mm	1808	4520 Metric	BX
Vishay Vitramon CDR03BX473AKURAT	50 VDC		High Reliability	R (0.01%)	10 %	MLCC, Surface Mount	0.08 "	2.03 mm	0.18 "	4.57 mm	-55 °C	125 °C	0.08 in	2.03 mm	1808	4520 Metric	BX
Vishay Vitramon CDR03BX223BKUSAJ	100 V	0.022 µF	High Reliability	S (0.001%)	10 %	MLCC, Surface Mount	0.08 "	2.03 mm	0.18 "	4.57 mm	-55 °C	125 °C	0.08 in	2.03 mm	1808	4520 Metric	BX
Vishay Vitramon CDR03BX123BKWSAJ	100 V	0.012 µF	High Reliability	S (0.001%)	10 %	MLCC, Surface Mount	0.08 "	2.03 mm	0.18 "	4.57 mm	-55 °C	125 °C	0.08 in	2.03 mm	1808	4520 Metric	BX
Vishay Vitramon CDR03BX683AKWSAT	50 VDC	0.068 µF	High Reliability	S (0.001%)	10 %	MLCC, Surface Mount	0.08 "	2.03 mm	0.18 "	4.57 mm	-55 °C	125 °C	0.08 in	2.03 mm	1808	4520 Metric	BX
Vishay Vitramon CDR03BX683AKWSAJ	50 VDC	0.068 µF	High Reliability	S (0.001%)	10 %	MLCC, Surface Mount	0.08 "	2.03 mm	0.18 "	4.57 mm	-55 °C	125 °C	0.08 in	2.03 mm	1808	4520 Metric	BX
