Q-1X04I0008048i

Active

Amphenol Custom Cable

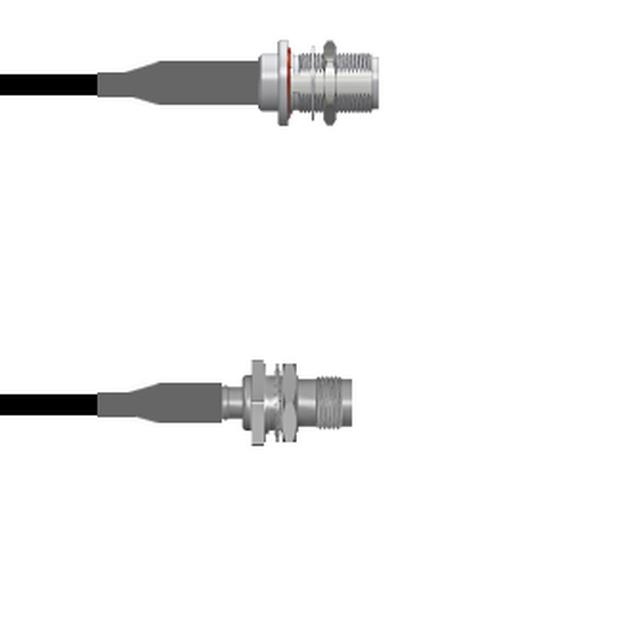

CBL ASSY NTYPE-TNC JACK-JACK 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1X04I0008048i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-JACK 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1X04I0008048i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms

Q-1X04I0 Series

Part	Color	1st Connector	Cable Type	1st Contact Gender	2nd Connector Mounting Feature	2nd Connector	1st Connector Mounting Feature	Features	2nd Connector Mounting Type	2nd Contact Gender	Overall Impedance	Frequency - Max [Max]	1st Connector Mounting Type	Length	Length	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1X04I0008024i	Black	N-Type Jack	RG-58	Female	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	11 GHz	Panel Mount	24 "	609.6 mm
Amphenol Custom Cable Q-1X04I0008048i	Black	N-Type Jack	RG-58	Female	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	11 GHz	Panel Mount	48 in	1200 mm	4 ft
Amphenol Custom Cable Q-1X04I00080.5M	Black	N-Type Jack	RG-58	Female	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	11 GHz	Panel Mount	19.69 "	50 cm
Amphenol Custom Cable Q-1X04I0008.25M	Black	N-Type Jack	RG-58	Female	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	11 GHz	Panel Mount				9.843 "	250 mm
Amphenol Custom Cable Q-1X04I00081.5M	Black	N-Type Jack	RG-58	Female	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	11 GHz	Panel Mount	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-1X04I0008002M	Black	N-Type Jack	RG-58	Female	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	11 GHz	Panel Mount	78.7 in	2 m	6.6 ft
Amphenol Custom Cable Q-1X04I00082.5M	Black	N-Type Jack	RG-58	Female	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	11 GHz	Panel Mount	98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-1X04I0008003M	Black	N-Type Jack	RG-58	Female	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	11 GHz	Panel Mount	118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-1X04I0008012i	Black	N-Type Jack	RG-58	Female	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	11 GHz	Panel Mount	12 "	304.8 mm
Amphenol Custom Cable Q-1X04I0008.75M	Black	N-Type Jack	RG-58	Female	Bulkhead - Front Side Nut	TNC Jack	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	11 GHz	Panel Mount	29.53 "	750 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 219.83
		25	$ 217.54
		50	$ 215.25
		100	$ 212.96
		250	$ 210.66

Description

General part information

Q-1X04I0 Series

Cable Assembly Coaxial N-Type to TNC RG-58 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
