82-4153.1000
ActiveEAO

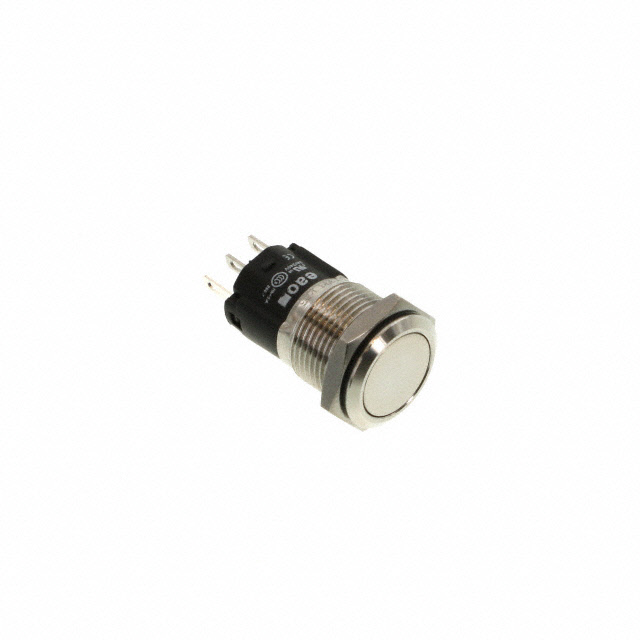

VANDAL RESISTANT SWITCH, SPDT, NATURAL, 82 SERIES, MOMENTARY, NON ILLUMINATED
Deep-Dive with AI
Search across all available documentation for this part.
82-4153.1000
ActiveEAO
VANDAL RESISTANT SWITCH, SPDT, NATURAL, 82 SERIES, MOMENTARY, NON ILLUMINATED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 82-4153.1000 | 82-4153 Series |
|---|---|---|
| Actuator Marking | - | No Marking |
| Actuator Type | - | Flush, Button, Round |
| Circuit | - | SPDT |
| Color - Actuator/Cap | - | Silver |
| Current Rating (Amps) | - | 3 - 200 A |
| Electrical Life | - | 50000 Cycles |
| Features | - | Stainless Steel |
| Illumination Type, Color | - | Green/Red, LED, Green, Yellow, Blue, Red |
| Illumination Voltage (Nominal) | - | 6 - 24 VAC/DC |
| Ingress Protection | - | IP67, IP65 |
| Mechanical Life | - | 500000 - 1000000 Cycles |
| Mounting Type | - | Panel Mount, Front |
| null | - | |
| Operating Temperature | - | 70 °C |
| Operating Temperature | - | -30 ░C |
| Panel Cutout Dimensions | - | 16 mm |
| Switch Function | - | On-Mom, On-On |
| Termination Style | - | 0.11 in |
| Termination Style | - | Quick Connect, Solder |
| Termination Style | - | 2.8 mm |
| Type | - | Illuminated, Standard |
| Voltage Rating - AC | - | 24 - 240 V |
| Voltage Rating - DC | - | 24 - 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
82-4153 Series
SWITCH PUSHBUTTON SPDT 200MA 24V
| Part | Electrical Life | Mechanical Life | Ingress Protection | Type | Termination Style | Termination Style | Termination Style | Illumination Voltage (Nominal) | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Circuit | Actuator Marking | Illumination Type, Color | Actuator Type | Voltage Rating - AC | Mounting Type | Voltage Rating - DC | Color - Actuator/Cap | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 82-4153.2134 | ||||||||||||||||||||||
EAO 82-4153.1000 | ||||||||||||||||||||||
EAO 82-4153.12A4 | 50000 Cycles | 1000000 Cycles | IP65, IP67 | Illuminated, Standard | 0.11 in | Quick Connect, Solder | 2.8 mm | 24 VAC/DC | 16 mm | 3 A | 70 °C | -30 ░C | On-Mom | SPDT | No Marking | Green/Red, LED | Button, Flush, Round | 240 V | Panel Mount, Front | 240 V | Silver | |
EAO 82-4153.2000 | 50000 Cycles | 500000 Cycles | IP65, IP67 | Standard | 0.11 in | Quick Connect, Solder | 2.8 mm | 16 mm | 200 mA | 70 °C | -30 ░C | On-On | SPDT | No Marking | Button, Flush, Round | 24 V | Panel Mount, Front | 24 V | Silver | Stainless Steel | ||
EAO 82-4153.1133 | 50000 Cycles | 1000000 Cycles | IP65, IP67 | Illuminated, Standard | 0.11 in | Quick Connect, Solder | 2.8 mm | 12 VAC/DC | 16 mm | 200 mA | 70 °C | -30 ░C | On-Mom | SPDT | No Marking | Green, LED | Button, Flush, Round | 24 V | Panel Mount, Front | 24 V | Silver | Stainless Steel |
EAO 82-4153.1143 | 50000 Cycles | 1000000 Cycles | IP65, IP67 | Illuminated, Standard | 0.11 in | Quick Connect, Solder | 2.8 mm | 12 VAC/DC | 16 mm | 200 mA | 70 °C | -30 ░C | On-Mom | SPDT | No Marking | LED, Yellow | Button, Flush, Round | 24 V | Panel Mount, Front | 24 V | Silver | |
EAO 82-4153.1122 | 50000 Cycles | 1000000 Cycles | IP65, IP67 | Illuminated, Standard | 0.11 in | Quick Connect, Solder | 2.8 mm | 6 VAC/DC | 16 mm | 200 mA | 70 °C | -30 ░C | On-Mom | SPDT | No Marking | Blue, LED | Button, Flush, Round | 24 V | Panel Mount, Front | 24 V | Silver | Stainless Steel |
EAO 82-4153.1113 | 50000 Cycles | 1000000 Cycles | IP65, IP67 | Illuminated, Standard | 0.11 in | Quick Connect, Solder | 2.8 mm | 12 VAC/DC | 16 mm | 200 mA | 70 °C | -30 ░C | On-Mom | SPDT | No Marking | LED, Red | Button, Flush, Round | 24 V | Panel Mount, Front | 24 V | Silver | Stainless Steel |
EAO 82-4153.11A4 | 50000 Cycles | 1000000 Cycles | IP65, IP67 | Illuminated, Standard | 0.11 in | Quick Connect, Solder | 2.8 mm | 24 VAC/DC | 16 mm | 3 A | 70 °C | -30 ░C | On-Mom | SPDT | No Marking | Green/Red, LED | Button, Flush, Round | 240 V | Panel Mount, Front | 240 V | Silver | |
EAO 82-4153.1123 | 50000 Cycles | 1000000 Cycles | IP65, IP67 | Illuminated, Standard | 0.11 in | Quick Connect, Solder | 2.8 mm | 12 VAC/DC | 16 mm | 200 mA | 70 °C | -30 ░C | On-Mom | SPDT | No Marking | Blue, LED | Button, Flush, Round | 24 V | Panel Mount, Front | 24 V | Silver | Stainless Steel |
Description
General part information
82-4153 Series
Pushbutton Switch SPDT Standard Panel Mount, Front
