MS3108A8S-1S
ActiveAmphenol Industrial Operations

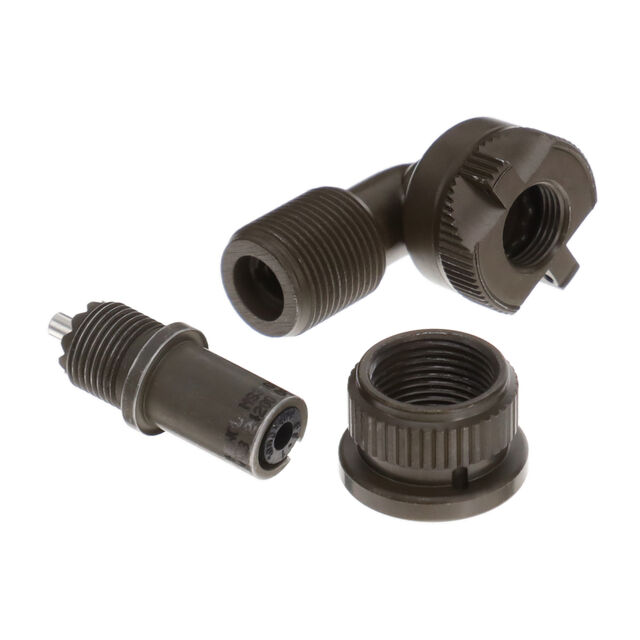

MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108A8S-1S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3108A8S-1S |
|---|---|
| Applications | Military, Marine |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Features | Coupling Nut |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015, MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 8S-1 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 189.91 | |
| 10 | $ 175.98 | |||
| 25 | $ 169.65 | |||
| 50 | $ 168.38 | |||
| Bulk | 1 | $ 101.11 | ||
| 4 | $ 93.19 | |||
| 40 | $ 89.46 | |||
MS3108A8 Series
MIL-5015 MS/AC THREADED PLUG
| Part | Applications | Ingress Protection | Mounting Type | Grade | Qualification | Number of Positions | Insert Material | Features | Shell Size - Insert | Shell Finish | Shielding | Connector Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Shell Material | Orientation | Contact Material | Color | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108A8S-1S | Marine, Military | Environment Resistant | Free Hanging (In-Line), Right Angle | Military | MIL-5015, MIL-DTL-5015 | 1 | Neoprene | Coupling Nut | 8S-1 | Olive Drab Chromate over Cadmium | Unshielded | Female Sockets, Plug | 13 A | -55 °C | 125 °C | Silver | Aluminum Alloy | N | Copper Alloy | Olive Drab | Metal |
Description
General part information
MS3108A8 Series
1 Position Circular Connector Plug, Female Sockets Solder Cup
