General part information
Circuit Breakers Circuit BreakerS
Technical documentation and resources
Parameters and characteristics for this part

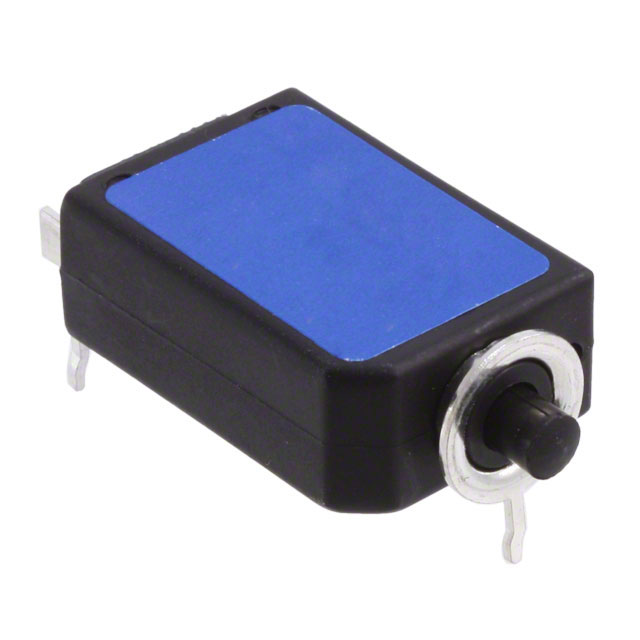

| Specification | 104-PR-0.1A |
|---|---|
| Actuator Type | Push to Reset |
| Approval Agency | IEC 60934, CE, CSA C22.2 No 235, GB 17701, UL1077 |
| Breaker Type | Thermal |
| Current Rating (Amps) | 100 mA |
| Mounting Type | Through Hole |
| Number of Poles | 1 |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 48 V |
Circuit Breakers Circuit BreakerS
| Part | Breaker Type | Approval Agency | Current Rating (Amps) | Actuator Type | Mounting Type | Voltage Rating - DC | Voltage Rating - AC | Number of Poles |
|---|---|---|---|---|---|---|---|---|
E-T-A 104-PR-0.1A | Thermal | CE, CSA C22.2 No 235, GB 17701, IEC 60934, UL1077 | 100 mA | Push to Reset | Through Hole | 48 V | 240 V | 1 |
