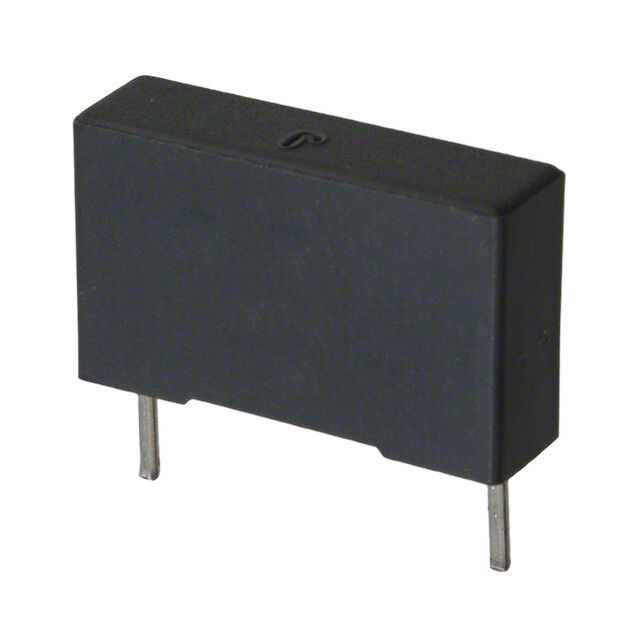

R75PI2470AA30J

Active

KEMET

CAP FILM 0.047UF 630V PP 5%( 18 X 5 X 11MM) RADIAL PLASTIC RECTANGULAR CAN 15MM 0.0237 OHM 105°C AUTOMOTIVE AEC-Q200 BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R75PI2470AA30J

R75PI2470AA30J

Active

KEMET

CAP FILM 0.047UF 630V PP 5%( 18 X 5 X 11MM) RADIAL PLASTIC RECTANGULAR CAN 15MM 0.0237 OHM 105°C AUTOMOTIVE AEC-Q200 BAG

Deep-Dive with AI

DocumentsDatasheet R75PI2470AA30J

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R75PI2470AA30J

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	250 V

R75PI Series

Part	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Voltage Rating - AC	Ratings	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Dielectric Material	Applications	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
KEMET R75PI318050H7J	13.3 mOhms	15 mm	0.591 in	250 V	AEC-Q200	Through Hole	Radial	13 mm	0.512 in	18 mm	0.709 in	12.1 mm	0.476 "	5 %	Metallized Polypropylene (PP)	Automotive High Frequency Switching High Pulse DV/DT	0.18 µF	-55 °C	125 °C	PC Pins
KEMET R75PI256050H3J	28.4 mOhms	15 mm	0.591 in	250 V	AEC-Q200	Through Hole	Radial	5 mm		18 mm				5 %	Metallized Polypropylene (PP)	Automotive High Frequency Switching High Pulse DV/DT	0.056 µF	-55 °C	125 °C	PC Pins	0.197 "	0.709 in	0.437 in	11.1 mm
KEMET R75PI2470AA30J		15 mm	0.591 in	250 V	AEC-Q200	Through Hole	Radial	5 mm		18 mm		11 mm	0.433 in	5 %	Metallized Polypropylene (PP)	Automotive High Frequency Switching High Pulse DV/DT		-55 °C	105 ░C	PC Pins	0.197 "	0.709 in
KEMET R75PI247050H3J	23.7 mOhms	15 mm	0.591 in	250 V	AEC-Q200	Through Hole	Radial	5 mm		18 mm				5 %	Metallized Polypropylene (PP)	Automotive High Frequency Switching High Pulse DV/DT		-55 °C	125 °C	PC Pins	0.197 "	0.709 in	0.437 in	11.1 mm
KEMET R75PI322050H3J	10.9 mOhms	15 mm	0.591 in	250 V	AEC-Q200	Through Hole	Radial			18 mm				5 %	Metallized Polypropylene (PP)	Automotive High Frequency Switching High Pulse DV/DT	0.22 µF	-55 °C	125 °C	PC Pins	0.394 in	0.709 in	0.634 in	16.1 mm	10 mm
KEMET R75PI3330AA30J	14 mOhms	15 mm	0.591 in	250 V	AEC-Q200	Through Hole	Radial	0.433 in 11 mm		0.709 " 18 mm				5 %	Metallized Polypropylene (PP)	Automotive High Frequency Switching High Pulse DV/DT	0.33 µF	-55 °C	105 ░C	PC Pins
KEMET R75PI315050H3J	10.6 mOhms	15 mm	0.591 in	250 V	AEC-Q200	Through Hole	Radial	8.5 mm		18 mm				5 %	Metallized Polypropylene (PP)	Automotive High Frequency Switching High Pulse DV/DT	0.15 ÁF	-55 °C	125 °C	PC Pins	0.335 in	0.709 in	0.575 in	14.6 mm
KEMET R75PI3150AA30K		15 mm	0.591 in	250 V	AEC-Q200	Through Hole	Radial	8.5 mm		18 mm				10 %	Metallized Polypropylene (PP)	Automotive High Frequency Switching High Pulse DV/DT	0.15 ÁF	-55 °C	105 ░C	PC Pins	0.335 in	0.709 in	0.575 in	14.6 mm
KEMET R75PI227050H0J	41.3 mOhms	15 mm	0.591 in	250 V	AEC-Q200	Through Hole	Radial	5 mm		18 mm				5 %	Metallized Polypropylene (PP)	Automotive High Frequency Switching High Pulse DV/DT	0.027 µF	-55 °C	125 °C	PC Pins	0.197 "	0.709 in	0.437 in	11.1 mm
KEMET R75PI31504030K		15 mm	0.591 in	250 V	AEC-Q200	Through Hole	Radial	8.5 mm		18 mm				10 %	Metallized Polypropylene (PP)	Automotive High Frequency Switching High Pulse DV/DT	0.15 ÁF	-55 °C	105 ░C	PC Pins	0.335 in	0.709 in	0.575 in	14.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.73
		10	$ 0.49
		100	$ 0.32
		2000	$ 0.20
		6000	$ 0.19
		10000	$ 0.18
Newark	Each	1000	$ 0.19
		2500	$ 0.17
