1411086

Active

Phoenix Contact

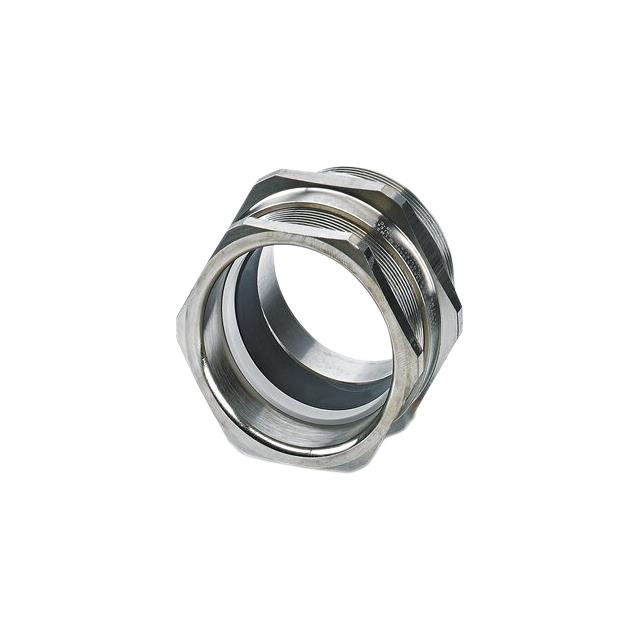

CABLE GLAND 47.2-56MM M63 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1411086

Active

Phoenix Contact

CABLE GLAND 47.2-56MM M63 BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411086	G-ESS Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Material	Brass, Nickel Plated	Brass, Nickel Plated, Stainless Steel
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-60 °C	-60 °C
Outside Cable Diameter (Max)	56 mm	56 mm
Outside Cable Diameter (Max)	-	20 - 44.1 mm
Outside Cable Diameter (Max)	-	14 mm
Outside Cable Diameter (Max)	-	0.551 "
Outside Cable Diameter (Max) [Max] [diameter]	2.205 in	0.787 - 2.205 in
Outside Cable Diameter (Min)	-	23.5 mm
Outside Cable Diameter (Min)	-	0.925 "
Outside Cable Diameter (Min)	-	6.5 - 35.6 mm
Outside Cable Diameter (Min)	-	0.437 in
Outside Cable Diameter (Min)	-	0.256 - 1.402 in
Outside Cable Diameter (Min)	-	11.18 mm
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	M63	M25, M20, M50, M63, M32
Type	Cable Gland	Cable Gland

G-ESS Series

CABLE GLND 23.5-32.2MM M40 BRASS

Part	Ingress Protection	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min)
Phoenix Contact 1411081	IP66, IP67, IP68	O-Ring, Seal	23.5 mm	0.925 "	1.268 in	32.2 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated
Phoenix Contact 1411078	IP66, IP67, IP68	O-Ring, Seal			0.787 "	20 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Stainless Steel	M25	11.1 mm	0.437 in
Phoenix Contact 1411075	IP66, IP67, IP68	O-Ring, Seal					0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated	M20	6.5 mm		14 mm	0.551 "	0.256 in
Phoenix Contact 1411084	IP66, IP67, IP68	O-Ring, Seal			1.736 "	44.1 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated	M50	35.6 mm				1.402 in
Phoenix Contact 1411087	IP66, IP67, IP68	O-Ring, Seal			2.205 in		0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Stainless Steel	M63						56 mm
Phoenix Contact 1411086	IP66, IP67, IP68	O-Ring, Seal			2.205 in		0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated	M63						56 mm
Phoenix Contact 1411085	IP66, IP67, IP68	O-Ring, Seal			1.736 "	44.1 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Stainless Steel	M50	35.6 mm				1.402 in
Phoenix Contact 1411079	IP66, IP67, IP68	O-Ring, Seal			1.035 in	26.3 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated	M32
Phoenix Contact 1411077	IP66, IP67, IP68	O-Ring, Seal			0.787 "	20 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated	M25					0.44 in		11.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 107.96

Description

General part information

G-ESS Series

Cable Gland Brass, Nickel Plated M63 Silver
