Q-2H04B0001060i

Active

Amphenol Custom Cable

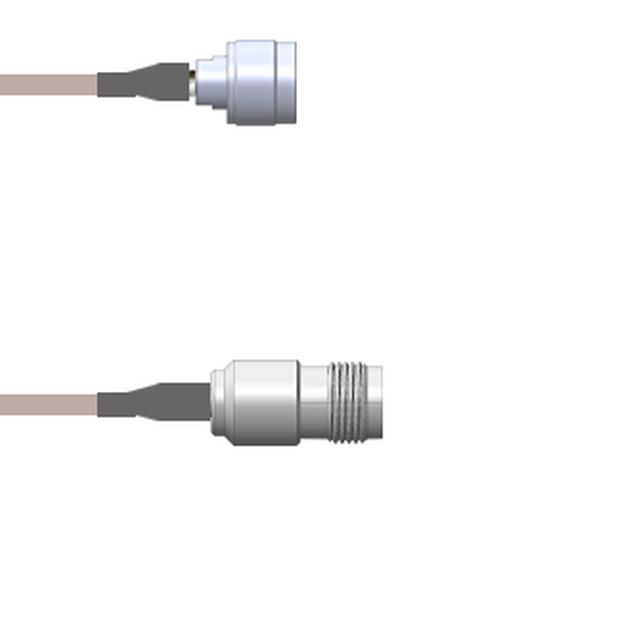

CBL ASSY NTYPE-TNC PLUG-JACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H04B0001060i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-JACK 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H04B0001060i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms

Q-2H04B0 Series

Part	Length	Length	2nd Connector	2nd Contact Gender	1st Connector Mounting Type	Overall Impedance	2nd Connector Mounting Type	Cable Type	Features	Color	Frequency - Max [Max]	1st Contact Gender	Length
Amphenol Custom Cable Q-2H04B0001012i	12 "	304.8 mm	TNC Jack	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	RG-178	Shielded	Copper	11 GHz	Male
Amphenol Custom Cable Q-2H04B00012.5M	98.4 in	2.5 m	TNC Jack	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	RG-178	Shielded	Copper	11 GHz	Male	8.2 '
Amphenol Custom Cable Q-2H04B0001001M	39.4 in	1 m	TNC Jack	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	RG-178	Shielded	Copper	11 GHz	Male	3.3 ft
Amphenol Custom Cable Q-2H04B0001084i	84 in	2.1 m	TNC Jack	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	RG-178	Shielded	Copper	11 GHz	Male	7 ft
Amphenol Custom Cable Q-2H04B0001060i	5 '	1.5 m	TNC Jack	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	RG-178	Shielded	Copper	11 GHz	Male	5 ft
Amphenol Custom Cable Q-2H04B0001002M	78.7 in	2 m	TNC Jack	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	RG-178	Shielded	Copper	11 GHz	Male	6.6 ft
Amphenol Custom Cable Q-2H04B0001024i	24 "	609.6 mm	TNC Jack	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	RG-178	Shielded	Copper	11 GHz	Male
Amphenol Custom Cable Q-2H04B0001009i	9 "	228.6 mm	TNC Jack	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	RG-178	Shielded	Copper	11 GHz	Male
Amphenol Custom Cable Q-2H04B0001003M	118.1 in	3 m	TNC Jack	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	RG-178	Shielded	Copper	11 GHz	Male	9.8 '
Amphenol Custom Cable Q-2H04B0001072i	72 in	1.8 m	TNC Jack	Female	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	RG-178	Shielded	Copper	11 GHz	Male	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 84.56
		25	$ 83.00
		50	$ 81.45
		100	$ 79.90
		250	$ 78.34

Description

General part information

Q-2H04B0 Series

Cable Assembly Coaxial N-Type to TNC RG-178 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
