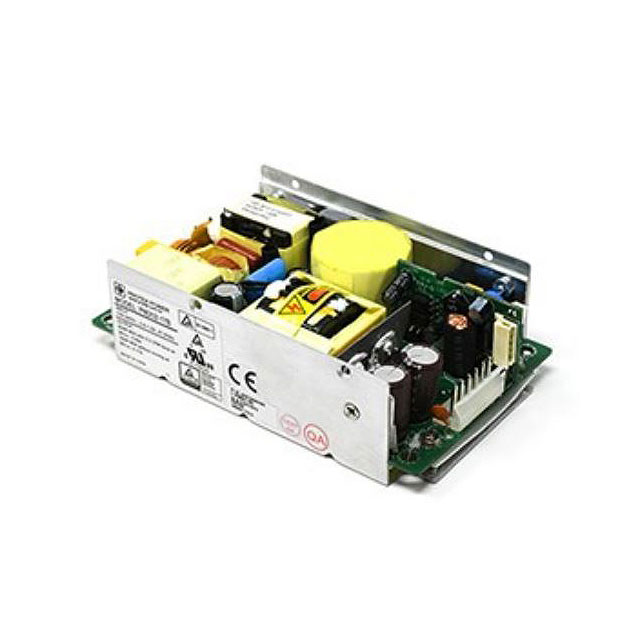

PM60-12A

Active

TT Electronics/Power Partners Inc.

AC/DC CONVERTER 12V 60W

Search across all available documentation for this part.

Active

TT Electronics/Power Partners Inc.

AC/DC CONVERTER 12V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	PM60-12A

Applications	ITE (Commercial), Medical
Approval Agency	TUV, cURus, cTUVus
Current - Output 1	5 A
Efficiency	88 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	60 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	1.18 in
Size / Dimension [z]	30 mm
Standard Number	60950-1, 60601-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

AC/DC CONVERTER 12V 60W

Part	Number of Outputs	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Mounting Type	Current - Output 1	Power (Watts)	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Approval Agency	Type	Voltage - Isolation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Features
TT Electronics/Power Partners Inc. PM60-12A	1	1.18 in	4 in	50.8 mm	30 mm	2 in	101.6 mm	88 %	Chassis Mount	5 A	60 W	12 V	264 VAC, 370 VDC	90 VAC, 120 VDC	60601-1, 60950-1, 62368-1	cTUVus, cURus, TUV	Open Frame	4000 V	ITE (Commercial), Medical	70 °C	-30 °C	Adjustable Output, Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC, 120 ~ 370 VDC Input
