Part	Note	Contact Termination	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Material	Pitch	Row Spacing	Number of Positions	Connector Type	Mounting Type	Fastening Type	Contact Type	Number of Rows	For Use With/Related Products	Accessory Type	Color
TE Connectivity AMP Connectors 1871419-1	Contacts Not Included	Crimp	-55 °C	105 °C	Glass Filled Polyester Thermoplastic	0.472 in	0.327 in	4	Plug	Free Hanging (In-Line)	Latch Holder	Tab	2
TE Connectivity AMP Connectors 2069524-1								4						Dynamic Series	Frame
TE Connectivity AMP Connectors 1747365-1		Crimp	-55 °C	105 °C	Glass Filled Polyester Thermoplastic	0.118 in	0.148 in	30	Receptacle	Free Hanging (In-Line)	Latch Holder	Female Socket	5			Black

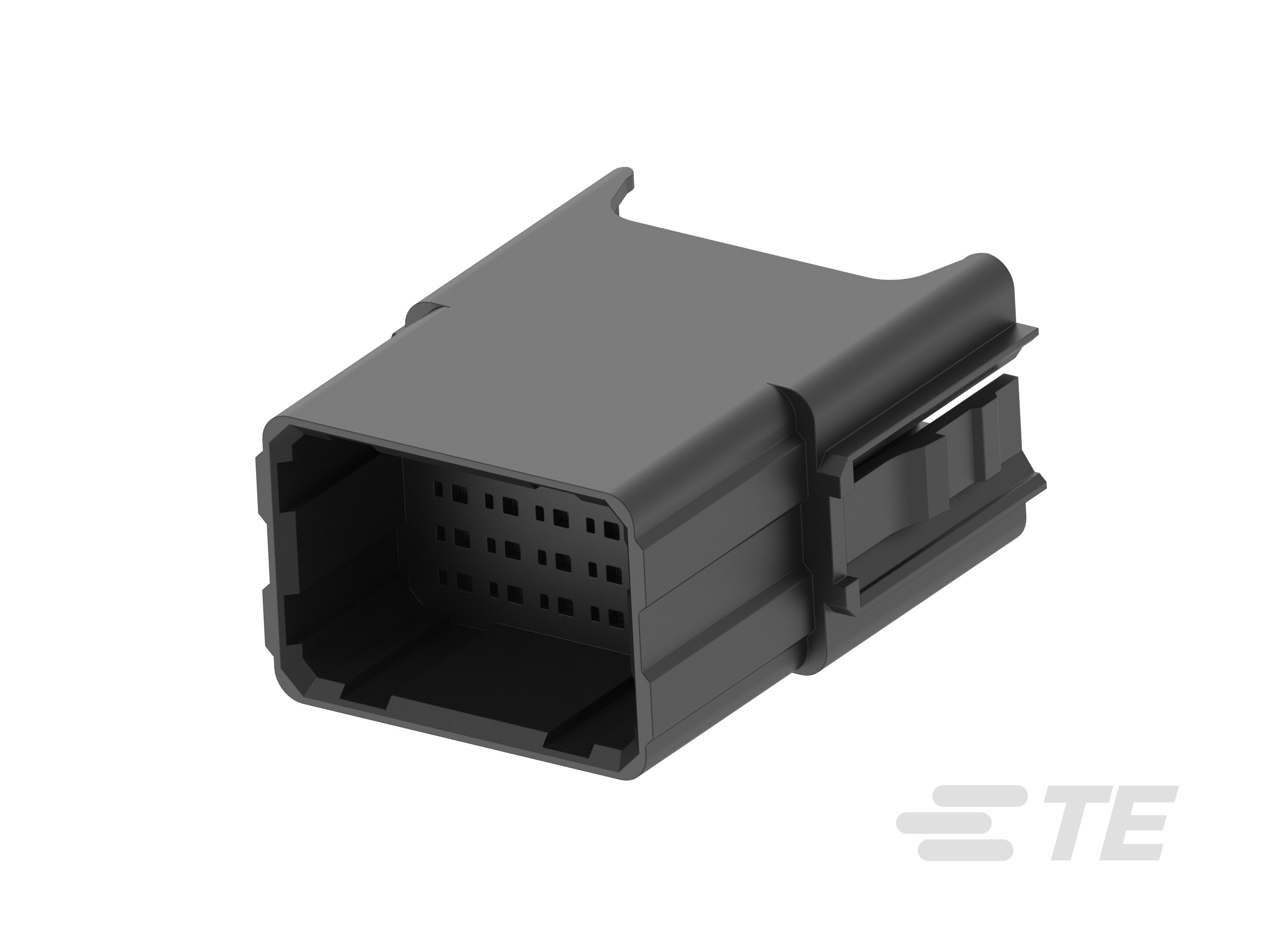

TE Connectivity AMP Connectors 1747366-1		Crimp	-55 °C	105 °C	Glass Filled Polyester Thermoplastic	0.118 in	0.148 in	30	Plug	Free Hanging (In-Line)	Latch Lock	Tab	5			Black

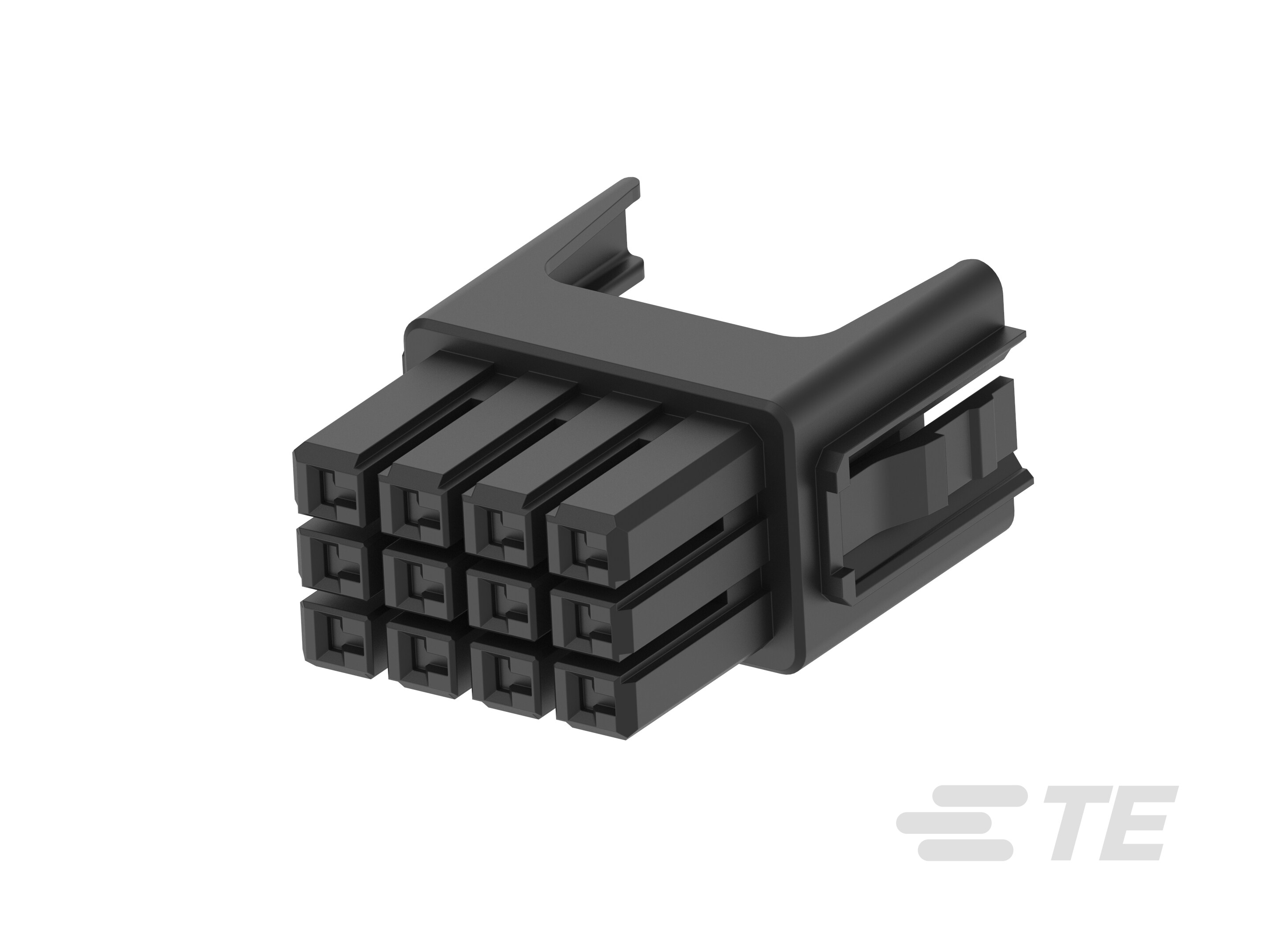

TE Connectivity AMP Connectors 1747363-1	Contacts Not Included	Crimp	-55 °C	105 °C	Glass Filled Polyester Thermoplastic	0.256 in	0.205 in	12	Receptacle	Free Hanging (In-Line)	Latch Lock	Female Socket	3			Black
TE Connectivity AMP Connectors 2069526-1															Frame

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
