845-102-556-807

Active

EDAC Inc.

CONN EDGE DUAL FML 102POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-102-556-807

Active

EDAC Inc.

CONN EDGE DUAL FML 102POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-102-556-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	102
Number of Positions/Bay/Row [custom]	51
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-102 Series

...

Part	Flange Feature	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Termination	Material - Insulation	Mounting Type	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Read Out	Card Type	Number of Rows	Number of Positions/Bay/Row [custom]	Contact Material	Gender	Number of Positions	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-102-525-202	3.25 mm	0.128 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Diallyl Phthalate (DAP)	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Dual	Non Specified - Dual Edge	2	51	Copper Alloy	Female	102	Gold	125 °C	-40 °C	2
EDAC Inc. 845-102-524-802	3.25 mm	0.128 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Diallyl Phthalate (DAP)	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Dual	Non Specified - Dual Edge	2	51	Copper Alloy	Female	102	Gold	125 °C	-40 °C	2
EDAC Inc. 845-102-556-807			10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Diallyl Phthalate (DAP)	Board Edge Straddle Mount	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Dual	Non Specified - Dual Edge	2	51	Copper Alloy	Female	102	Gold	125 °C	-40 °C	2	Card Extender	M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-102-542-203			10 Áin	0.25 Ám	2.54 mm	0.1 in	Wire Wrap	Diallyl Phthalate (DAP)	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Dual	Non Specified - Dual Edge	2	51	Copper Alloy	Female	102	Gold	125 °C	-40 °C	2		Floating Bobbin Flush Mount	0.116 in	2.95 mm
EDAC Inc. 845-102-523-802	3.25 mm	0.128 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Diallyl Phthalate (DAP)	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Dual	Non Specified - Dual Edge	2	51	Copper Alloy	Female	102	Gold	125 °C	-40 °C	2
EDAC Inc. 845-102-541-508			10 Áin	0.25 Ám	2.54 mm	0.1 in	Wire Wrap	Diallyl Phthalate (DAP)	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Dual	Non Specified - Dual Edge	2	51	Copper Alloy	Female	102	Gold	125 °C	-40 °C	2		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-102-500-802	3.25 mm	0.128 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder Eyelet(s)	Diallyl Phthalate (DAP)	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Dual	Non Specified - Dual Edge	2	51	Copper Alloy	Female	102	Gold	125 °C	-40 °C	2
EDAC Inc. 845-102-500-812	3.25 mm	0.128 in	10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder Eyelet(s)	Diallyl Phthalate (DAP)	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Dual	Non Specified - Dual Edge	2	51	Copper Alloy	Female	102	Gold	125 °C	-40 °C	2		Side Mount Opening Unthreaded
EDAC Inc. 845-102-559-504			10 Áin	0.25 Ám	2.54 mm	0.1 in	Solder	Diallyl Phthalate (DAP)	Through Hole Right Angle	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Dual	Non Specified - Dual Edge	2	51	Copper Alloy	Female	102	Gold	125 °C	-40 °C	2		Top Mount Opening Unthreaded	0.156 in	3.96 mm
EDAC Inc. 845-102-541-807			10 Áin	0.25 Ám	2.54 mm	0.1 in	Wire Wrap	Diallyl Phthalate (DAP)	Through Hole	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Dual	Non Specified - Dual Edge	2	51	Copper Alloy	Female	102	Gold	125 °C	-40 °C	2		M3 Threaded Insert Top Mount Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 118.12
Newark	Each	1	$ 136.36
		100	$ 99.95
		250	$ 84.95
		500	$ 73.50
		1000	$ 57.38

Description

General part information

845-102 Series

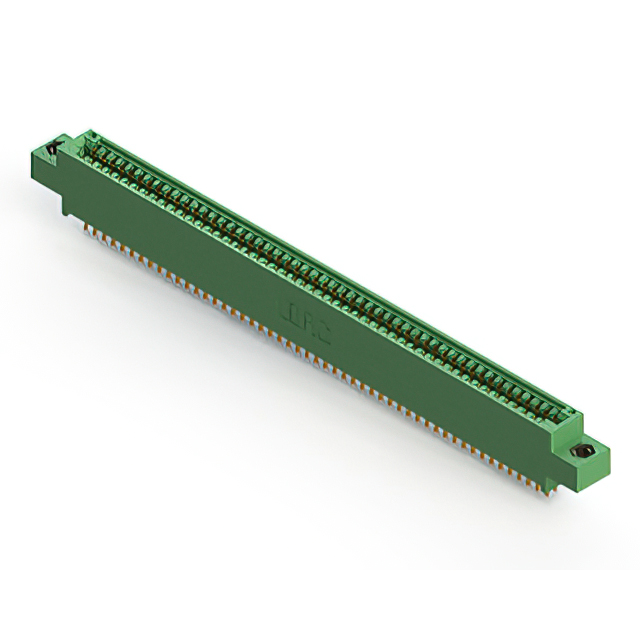

102 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
