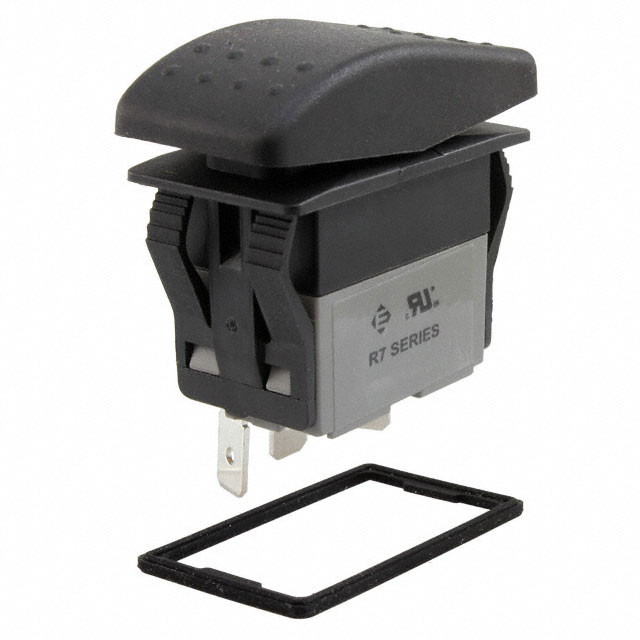

R716FB1-SXXXNBDNNX
ActiveE-Switch
SWITCH ROCKER SPDT 16A 30V
Deep-Dive with AI
Search across all available documentation for this part.
R716FB1-SXXXNBDNNX
ActiveE-Switch
SWITCH ROCKER SPDT 16A 30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R716FB1-SXXXNBDNNX |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) |
| Approval Agency | cULus |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 37 mm |
| Panel Cutout Dimensions [y] | 21.1 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.61 | |
| 20 | $ 5.96 | |||
| 40 | $ 5.49 | |||
Description
General part information
R716FB1 Series
Rocker Switch SPDT 16A (DC) Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
