ZPDR-24V-S

Active

JST Sales America Inc.

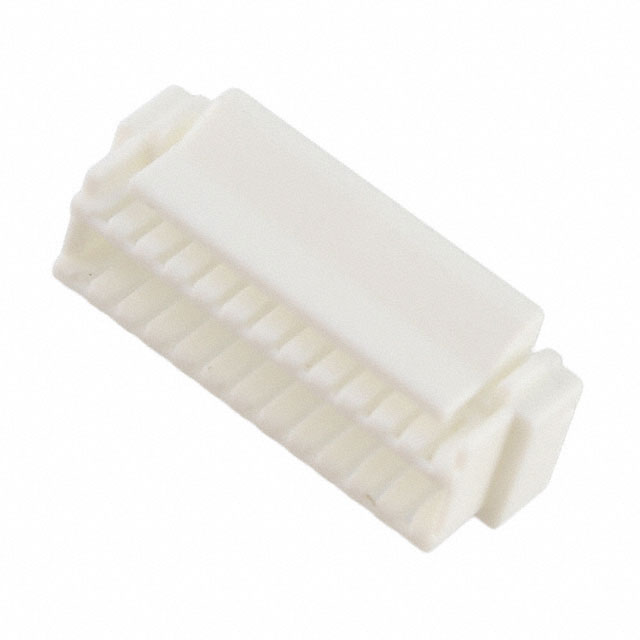

CONN RCPT HSG 24POS 1.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

ZPDR-24V-S

Active

JST Sales America Inc.

CONN RCPT HSG 24POS 1.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.51
		10	$ 0.44
		100	$ 0.36
		1000	$ 0.26
		5000	$ 0.23
		10000	$ 0.21

Description

General part information

ZPDR Series

24 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet

Specification	ZPDR-24V-S	ZPDR Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	24	10 - 30
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	1.5 mm	1.5 mm
Pitch [x]	0.059 in	0.059 in

Part	Contact Termination	Contact Type	Note	Insulation Material	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type
JST Sales America Inc. ZPDR-20V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	20	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-10V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	10	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-28V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	28	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-22V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	22 positions	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-26V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	26	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-30V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	30	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-18V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	18	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-12V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	12	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-14V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	14	Natural	-25 °C	85 °C	Latch Lock	Receptacle
JST Sales America Inc. ZPDR-24V-S	Crimp	Female Socket	Contacts Not Included	Polybutylene Terephthalate (PBT)	1.5 mm	0.059 in	2	Free Hanging (In-Line)	24	Natural	-25 °C	85 °C	Latch Lock	Receptacle
