Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D03L0005024i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D03L0005024i

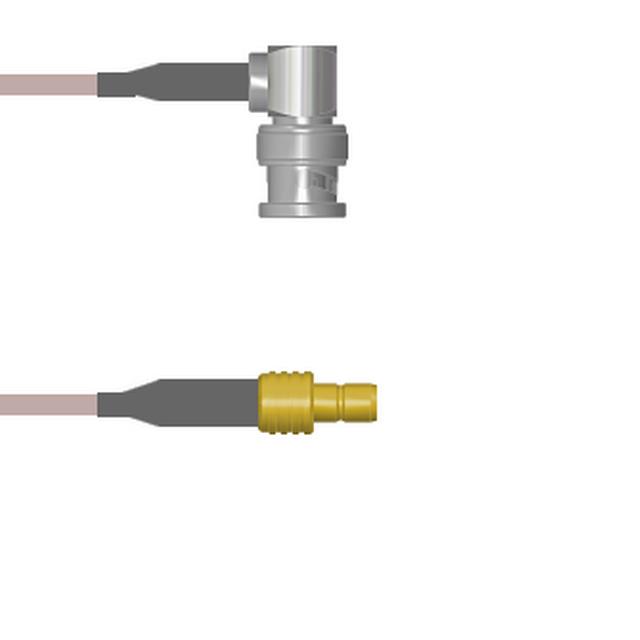

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0D03L0 Series

Part	Features	Color	Frequency - Max [Max]	Cable Type	Overall Impedance	Length	Length	1st Contact Gender	2nd Contact Gender	2nd Connector	1st Connector Mounting Type	2nd Connector Mounting Type	1st Connector	Style	Length
Amphenol Custom Cable Q-0D03L00050.5M	Shielded	Copper	4 GHz	RG-316	50 Ohms	50 cm	19.69 "	Male	Female	SMB Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to SMB
Amphenol Custom Cable Q-0D03L0003006i	Shielded	Black	4 GHz	RG-174	50 Ohms	152.4 mm	6 in	Male	Female	SMB Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to SMB
Amphenol Custom Cable Q-0D03L0005001M	Shielded	Copper	4 GHz	RG-316	50 Ohms	1 m	39.4 in	Male	Female	SMB Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to SMB	3.3 ft
Amphenol Custom Cable Q-0D03L0003060i	Shielded	Black	4 GHz	RG-174	50 Ohms	1.5 m	5 '	Male	Female	SMB Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to SMB	5 ft
Amphenol Custom Cable Q-0D03L0003002M	Shielded	Black	4 GHz	RG-174	50 Ohms	2 m	78.7 in	Male	Female	SMB Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to SMB	6.6 ft
Amphenol Custom Cable Q-0D03L00032.5M	Shielded	Black	4 GHz	RG-174	50 Ohms	2.5 m	98.4 in	Male	Female	SMB Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to SMB	8.2 '
Amphenol Custom Cable Q-0D03L0005003M	Shielded	Copper	4 GHz	RG-316	50 Ohms	3 m	118.1 in	Male	Female	SMB Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to SMB	9.8 '
Amphenol Custom Cable Q-0D03L0005060i	Shielded	Copper	4 GHz	RG-316	50 Ohms	1.5 m	5 '	Male	Female	SMB Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to SMB	5 ft
Amphenol Custom Cable Q-0D03L0005024i	Shielded	Copper	4 GHz	RG-316	50 Ohms	609.6 mm	24 "	Male	Female	SMB Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to SMB
Amphenol Custom Cable Q-0D03L00031.5M	Shielded	Black	4 GHz	RG-174	50 Ohms	1.5 m	59.1 in	Male	Female	SMB Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	BNC to SMB	4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 71.51
		25	$ 70.11
		50	$ 68.70
		100	$ 67.30
		250	$ 65.89

Description

General part information

Q-0D03L0 Series

Cable Assembly Coaxial BNC to SMB RG-316 24.00" (609.60mm)
