Q-0M03Y000H012i

Active

Amphenol Custom Cable

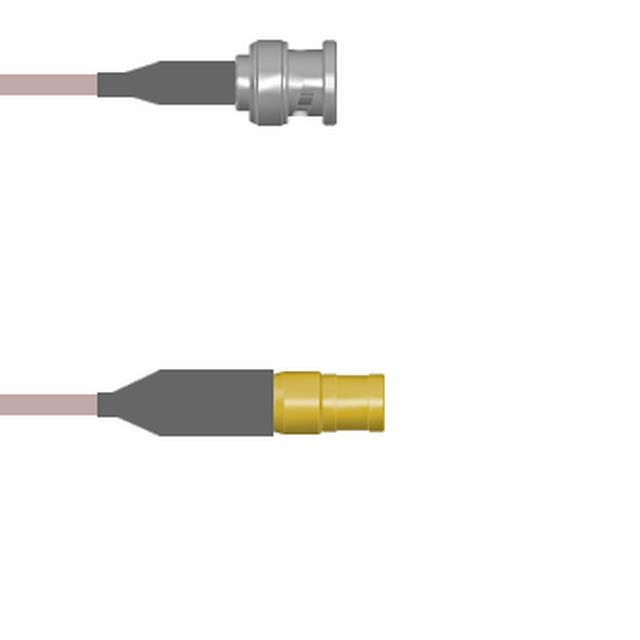

CBL ASSY BNC-SMB PLUG-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0M03Y000H012i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0M03Y000H012i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0M03Y0 Series

Part	2nd Connector	Length	Length	Length	2nd Connector Mounting Type	1st Connector	Frequency - Max [Max]	1st Contact Gender	2nd Contact Gender	Overall Impedance	Features	Color	Cable Type	Style	1st Connector Mounting Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0M03Y000H048i	SMB Plug	1200 mm	4 ft	48 in	Free Hanging (In-Line)	BNC Plug	4 GHz	Male	Male	50 Ohms	Shielded	Copper	RG-142	BNC to SMB	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M03Y000H0.5M	SMB Plug	50 cm		19.69 "	Free Hanging (In-Line)	BNC Plug	4 GHz	Male	Male	50 Ohms	Shielded	Copper	RG-142	BNC to SMB	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M03Y000H006i	SMB Plug	152.4 mm		6 in	Free Hanging (In-Line)	BNC Plug	4 GHz	Male	Male	50 Ohms	Shielded	Copper	RG-142	BNC to SMB	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M03Y000H024i	SMB Plug	609.6 mm		24 "	Free Hanging (In-Line)	BNC Plug	4 GHz	Male	Male	50 Ohms	Shielded	Copper	RG-142	BNC to SMB	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M03Y000H012i	SMB Plug	304.8 mm		12 "	Free Hanging (In-Line)	BNC Plug	4 GHz	Male	Male	50 Ohms	Shielded	Copper	RG-142	BNC to SMB	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M03Y000H001M	SMB Plug	1 m	3.3 ft	39.4 in	Free Hanging (In-Line)	BNC Plug	4 GHz	Male	Male	50 Ohms	Shielded	Copper	RG-142	BNC to SMB	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M03Y000H.25M	SMB Plug				Free Hanging (In-Line)	BNC Plug	4 GHz	Male	Male	50 Ohms	Shielded	Copper	RG-142	BNC to SMB	Free Hanging (In-Line)	9.843 "	250 mm
Amphenol Custom Cable Q-0M03Y000H003M	SMB Plug	3 m	9.8 '	118.1 in	Free Hanging (In-Line)	BNC Plug	4 GHz	Male	Male	50 Ohms	Shielded	Copper	RG-142	BNC to SMB	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M03Y000H1.5M	SMB Plug	1.5 m	4.9 ft	59.1 in	Free Hanging (In-Line)	BNC Plug	4 GHz	Male	Male	50 Ohms	Shielded	Copper	RG-142	BNC to SMB	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M03Y000H018i	SMB Plug				Free Hanging (In-Line)	BNC Plug	4 GHz	Male	Male	50 Ohms	Shielded	Copper	RG-142	BNC to SMB	Free Hanging (In-Line)		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 89.46
		25	$ 87.71
		50	$ 85.96
		100	$ 84.22
		250	$ 82.47

Description

General part information

Q-0M03Y0 Series

Cable Assembly Coaxial BNC to SMB RG-142 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
