04T-JWPF-VSLE-S
ActiveJST Sales America Inc.

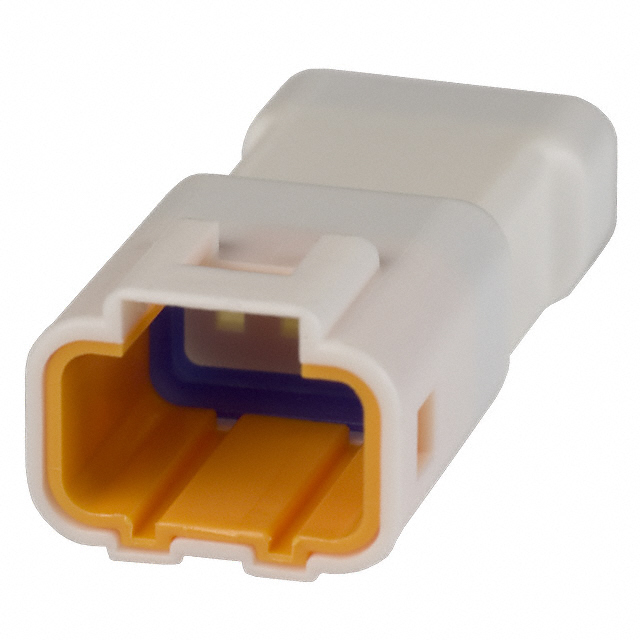

CONN PLUG HSG 4POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
04T-JWPF-VSLE-S
ActiveJST Sales America Inc.
CONN PLUG HSG 4POS 2.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 04T-JWPF-VSLE-S |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | JIS C 0920 Grade Level 7 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.67 | |
| 10 | $ 1.45 | |||
| 25 | $ 1.39 | |||
| 50 | $ 1.36 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.18 | |||
| 500 | $ 1.08 | |||
| 1000 | $ 0.93 | |||
| 3000 | $ 0.87 | |||
Description
General part information
04T-JWPF Series
4 Rectangular Connectors - Housings Plug Natural 0.079" (2.00mm)
Documents
Technical documentation and resources
