TSN2.00SV250

Active

Techflex

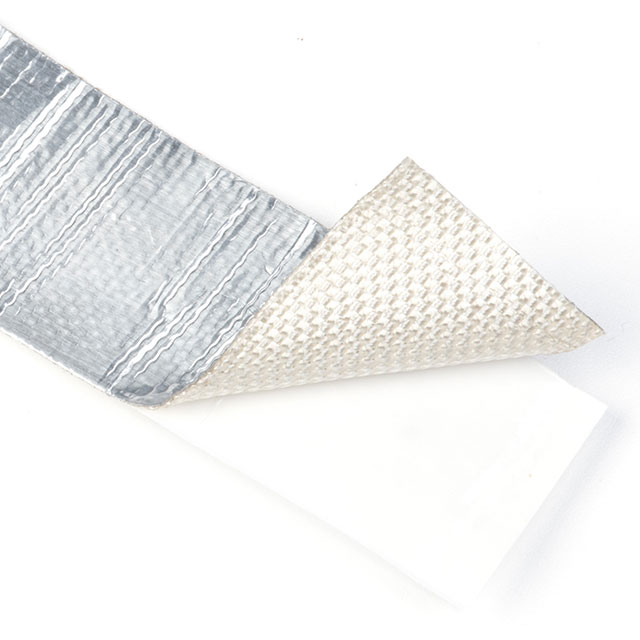

SELF WRAP 2" X 250' SILVER

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 2" X 250' SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	TSN2.00SV250

Abrasion Protection	Abrasion Resistant
Color	Silver
Diameter - Inside, Non-Expanded [diameter]	50.8 mm
Diameter - Inside, Non-Expanded [diameter]	2 in
Features	Adhesive Coated Backing, Chemical Resistant, Clean Cut
Heat Protection	Heat Resistant
Length [x]	76.2 m
Length [x]	250 ft
Liquid Protection	Gasoline Resistant
Material	Halogen Free, Fiberglass, Aluminized
Material Flammability Rating	Non Combustible
Operating Temperature [Max]	255 °C
Operating Temperature [Min]	-60 °C
Type	Self Wrap
Type Attributes	Sheet
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

SELF WRAP 2" X 250' SILVER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Heat Protection	Features	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Abrasion Protection	Type Attributes	Wall Thickness [custom]	Wall Thickness [custom]	Material Flammability Rating	Liquid Protection	Material	Length [x]	Length [x]	Type	Color
Techflex TSN2.00SV250	-60 °C	255 °C	Heat Resistant	Adhesive Coated Backing, Chemical Resistant, Clean Cut	50.8 mm	2 in	Abrasion Resistant	Sheet	0.025 in	0.64 mm	Non Combustible	Gasoline Resistant	Aluminized, Fiberglass, Halogen Free	76.2 m	250 ft	Self Wrap	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 510.99

General part information

Self Wrap X 250' (76.20m) Silver
