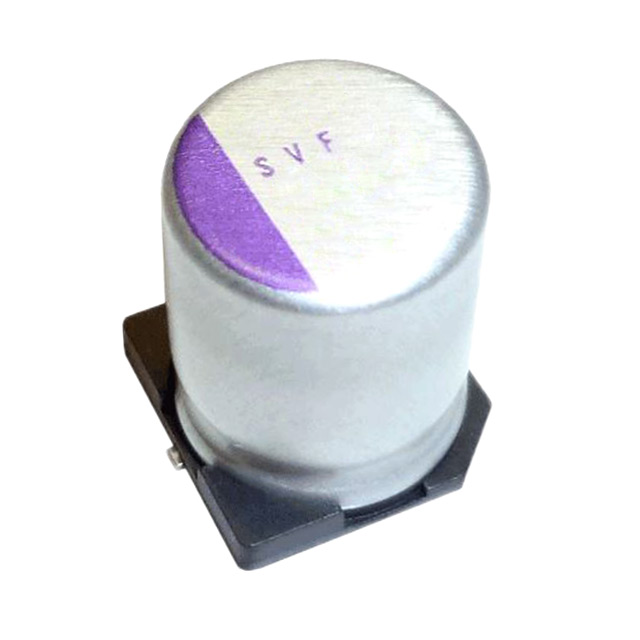

16SVF82M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 82UF 20% 16V SMD

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 82UF 20% 16V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	16SVF82M

Applications	General Purpose
Capacitance	82 µF
ESR (Equivalent Series Resistance)	27 mOhms
Height - Seated (Max) [Max]	0.236 in
Height - Seated (Max) [Max]	6 mm
Lifetime @ Temp.	1000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	940 mA
Ripple Current @ Low Frequency	47 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Surface Mount Land Size [x]	0.209 in
Surface Mount Land Size [x]	5.3 mm
Surface Mount Land Size [y]	5.3 mm
Surface Mount Land Size [y]	0.209 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

Part	ESR (Equivalent Series Resistance)	Voltage - Rated	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Mounting Type	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Ripple Current @ Low Frequency	Type	Lifetime @ Temp.	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]
Panasonic Industrial Automation Sales 16SVF82M	27 mOhms	16 V	Radial Can - SMD	0.236 in	6 mm	82 µF	5 mm	0.197 "	20 %	Surface Mount	940 mA	-55 °C	125 °C	General Purpose	47 mA	Polymer	1000 Hrs	5.3 mm	0.209 in	5.3 mm	0.209 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

82 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 27mOhm 1000 Hrs @ 125°C
