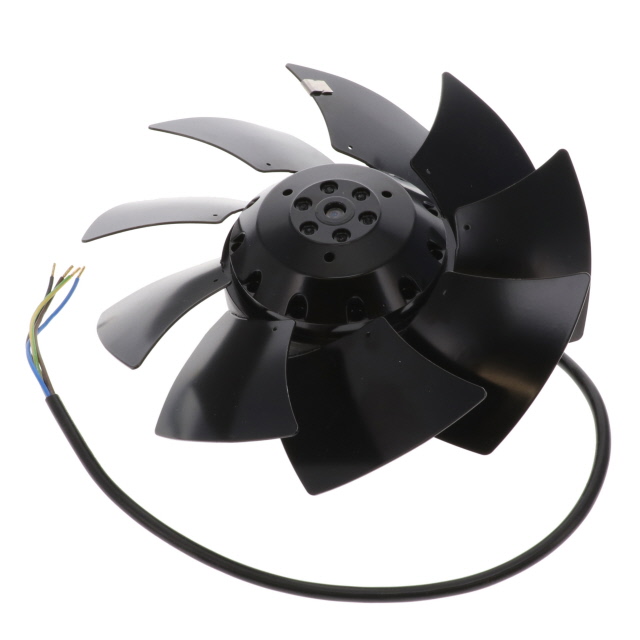

Specification	A2E200-AH38-01

Air Flow	542.2 CFM
Approval Agency	EAC, CE, CCC
Bearing Type	Ball
Current Rating	0.34 A
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Noise	65 dB
Operating Temperature (Max)	149 °F
Operating Temperature (Min)	-13 °F
Power (Watts)	78 W
RPM	2900 RPM
Size / Dimension Diameter	197 mm
Size / Dimension Shape	Round
Static Pressure	0.602 in H2O
Termination	4 Wire Leads with Splice Terminals
Termination Leads Count	4
Termination Type	Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width	65.5 mm

A2E200 Series

Part	Material - Blade	Current Rating	Bearing Type	Ingress Protection	Size / Dimension Shape	Size / Dimension Diameter	Termination Leads Count	Termination Type	Termination	Features	Power (Watts)	Approval Agency	RPM	Fan Type	Width	Voltage - Rated	Operating Temperature (Min)	Operating Temperature (Max)	Static Pressure	Air Flow	Noise
ebm-papst Inc. A2E200-AA19-51	Steel	0.7 A	Ball	IP44	Round	195 mm	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	82 W	CE UL	2900 RPM	Tubeaxial	74.5 mm	115 V
ebm-papst Inc. A2E200-AF02-53	Steel	0.28 A	Ball	IP44	Round	195 mm	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	61 W	CE UL	3120 RPM	Tubeaxial	70 mm	230 VAC	-13 °F	167 °F	0.803 in H2O
ebm-papst Inc. A2E200-AH38-01	Steel	0.34 A	Ball	IP44	Round	197 mm	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	78 W	CCC CE EAC	2900 RPM	Tubeaxial	65.5 mm	230 VAC	-13 °F	149 °F	0.602 in H2O	542.2 CFM	65 dB
ebm-papst Inc. A2E200-AF02-54	Steel	0.28 A	Ball	IP44	Round	195 mm	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	61 W		3120 RPM	Tubeaxial	70 mm	230 VAC	-13 °F	167 °F	0.803 in H2O
ebm-papst Inc. A2E200-AF02-02	Steel	0.28 A	Ball	IP44	Round	195 mm	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	61 W	CCC CE EAC	3120 RPM	Tubeaxial	70 mm	230 VAC	-13 °F	167 °F	0.803 in H2O	488.9 CFM	69 dB
ebm-papst Inc. A2E200-AH38-70	Steel	390 mA	Ball	IP44	Round	197 mm	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	90 W	CE CSA UL	2900 RPM	Tubeaxial	65.5 mm	230 VAC	-13 °F	149 °F	0.6 in H2O
ebm-papst Inc. A2E200-AI38-01	Steel	0.34 A	Ball	IP44	Round	197 mm	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	78 W	CCC CE EAC	2900 RPM	Tubeaxial	64 mm	230 VAC	-13 °F	149 °F	0.602 in H2O	583.1 CFM
ebm-papst Inc. A2E200-AF02-01	Steel	0.28 A	Ball	IP44	Round	195 mm	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	Capacitor Thermal Overload Protector (TOP)	61 W	CCC CE EAC	3120 RPM	Tubeaxial	70.5 mm	230 VAC	-13 °F	167 °F	0.803 in H2O	435.9 CFM	65 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

A2E200-AH38-01 | Datasheet
