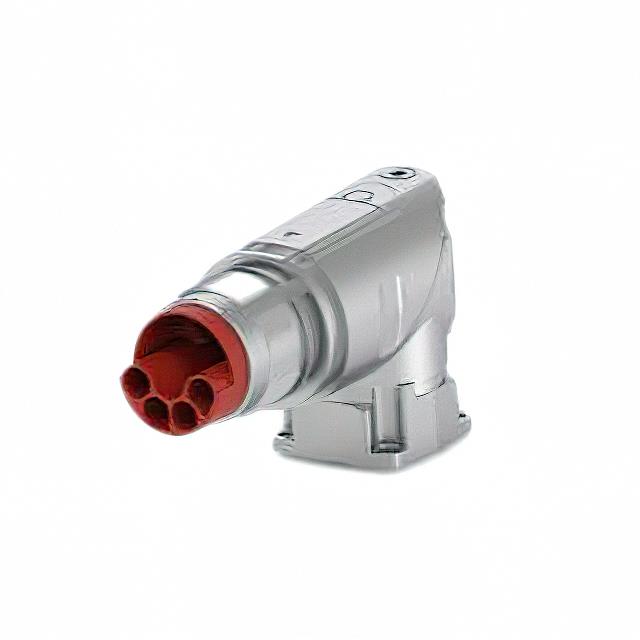

HGC402N00003200000

Active

TE Intercontec

CONN RCPT HSG MALE PNL MNT RA

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE PNL MNT RA

Technical Specifications

Parameters and characteristics for this part

Specification	HGC402N00003200000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Backshell, Rotatable
Housing Color	Silver
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Brass and Zinc Die Cast
Shielding	Shielded
Type	For Male Pins

Part	Shielding	Contact Shape	Orientation	Shell Finish	Note	Mounting Type	Fastening Type	Type	Mounting Feature	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Ingress Protection	Connector Type	Material Flammability Rating	Shell Material	Features
TE Intercontec HGC402N00003200000	Shielded	Circular	Keyed	Nickel	Contacts Not Included	Panel Mount Right Angle	Push-Twist	For Male Pins	Flange	Silver	-20 C	130 °C	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	IP66/IP67	Receptacle Housing	UL94 V-0	Brass and Zinc Die Cast	Backshell Rotatable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
