1-796640-4

Active

TE Connectivity AMP Connectors

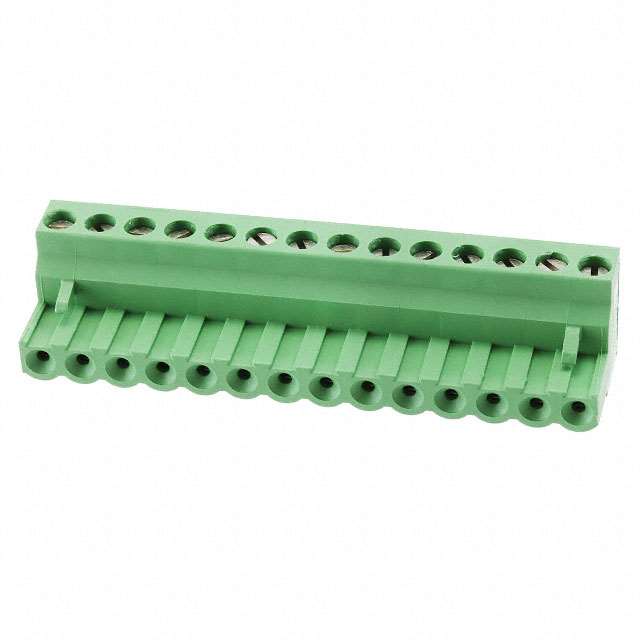

TERM BLOCK PLUG 14POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

1-796640-4

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 14POS STR 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.53
		50	$ 12.26
		100	$ 11.06
		1000	$ 9.51

Description

General part information

796640 Series

14 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-796640-4	796640 Series

Color	Green	Green
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Features	Side Stacking, Retention Latches (Non-Wire Side)	Side Stacking, Retention Latches (Non-Wire Side), Positions Stamped
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	14	2 - 20
Number of Positions	-	16
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	14	2 - 20
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	3 mm˛
Wire Gauge or Range - mm˛	-	0.05 mm˛
Wire Gauge or Range - mm² [Max]	3 mm²	3 mm²
Wire Gauge or Range - mm² [Min]	0.05 mm²	0.05 mm²
Wire Strip Length [Max]	7.5 mm	7.5 mm
Wire Strip Length [Min]	6 mm	6 mm

796640 Series

TERM BLOCK PLUG 13POS STR 5MM

Part	Number of Levels	Insulation Height	Insulation Height	Positions Per Level	Pitch [x]	Pitch [x]	Contact Material	Type	Number of Positions	Wire Strip Length [Max]	Wire Strip Length [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Features	Color	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Mounting Type	Screw Size	Material Flammability Rating	Voltage - UL	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Positions
TE Connectivity AMP Connectors 1-796640-3	1	0.61 in	15.49 mm	13	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	13	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 1-796640-5	1	0.61 in	15.49 mm	15	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	15	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 1-796640-2	1	0.61 in	15.49 mm	12	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	12	7.5 mm	6 mm	-40 °C	110 °C			Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 1-796640-4	1	0.61 in	15.49 mm	14	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	14	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 796640-8	1	0.61 in	15.49 mm	8	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	8	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 796640-9	1	0.61 in	15.49 mm	9	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	9	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 1-796640-6	1	0.61 in	15.49 mm	16	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets		7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V			16
TE Connectivity AMP Connectors 5-796640-7	1	0.61 in	15.49 mm	6	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	6	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Positions Stamped, Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 3-796640-4	1	0.61 in	15.49 mm	10	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	10	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Positions Stamped, Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 796640-2	1	0.61 in	15.49 mm	2	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	2	7.5 mm	6 mm	-40 °C	110 °C			Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V	3 mm˛	0.05 mm˛
