796640-9

Active

TE Connectivity AMP Connectors

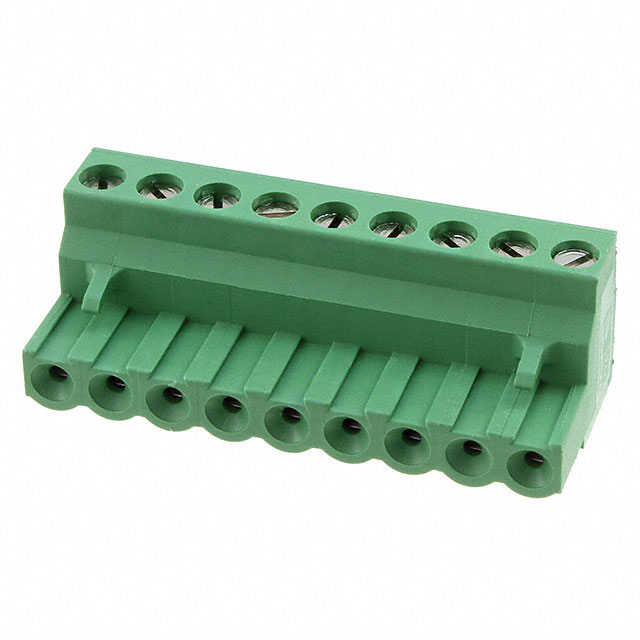

TERM BLOCK PLUG 9POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796640-9

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 9POS STR 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.98
		10	$ 9.03
		25	$ 8.79
		50	$ 8.45
		100	$ 7.83
		300	$ 7.78
		500	$ 7.50
		1000	$ 6.69

Description

General part information

796640 Series

9 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796640-9	796640 Series

Color	Green	Green
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Features	Side Stacking, Retention Latches (Non-Wire Side)	Side Stacking, Retention Latches (Non-Wire Side), Positions Stamped
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	9	2 - 20
Number of Positions	-	16
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	9	2 - 20
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	3 mm˛
Wire Gauge or Range - mm˛	-	0.05 mm˛
Wire Gauge or Range - mm² [Max]	3 mm²	3 mm²
Wire Gauge or Range - mm² [Min]	0.05 mm²	0.05 mm²
Wire Strip Length [Max]	7.5 mm	7.5 mm
Wire Strip Length [Min]	6 mm	6 mm

796640 Series

TERM BLOCK PLUG 13POS STR 5MM

Part	Number of Levels	Insulation Height	Insulation Height	Positions Per Level	Pitch [x]	Pitch [x]	Contact Material	Type	Number of Positions	Wire Strip Length [Max]	Wire Strip Length [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Features	Color	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Mounting Type	Screw Size	Material Flammability Rating	Voltage - UL	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Positions
TE Connectivity AMP Connectors 1-796640-3	1	0.61 in	15.49 mm	13	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	13	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 1-796640-5	1	0.61 in	15.49 mm	15	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	15	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 1-796640-2	1	0.61 in	15.49 mm	12	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	12	7.5 mm	6 mm	-40 °C	110 °C			Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 1-796640-4	1	0.61 in	15.49 mm	14	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	14	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 796640-8	1	0.61 in	15.49 mm	8	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	8	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 796640-9	1	0.61 in	15.49 mm	9	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	9	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 1-796640-6	1	0.61 in	15.49 mm	16	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets		7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V			16
TE Connectivity AMP Connectors 5-796640-7	1	0.61 in	15.49 mm	6	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	6	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Positions Stamped, Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 3-796640-4	1	0.61 in	15.49 mm	10	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	10	7.5 mm	6 mm	-40 °C	110 °C	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	Positions Stamped, Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V
TE Connectivity AMP Connectors 796640-2	1	0.61 in	15.49 mm	2	5 mm	0.197 in	Phosphor Bronze	Plug, Female Sockets	2	7.5 mm	6 mm	-40 °C	110 °C			Screw - Rising Cage Clamp	Retention Latches (Non-Wire Side), Side Stacking	Green	0.79 Nm	7 Lb-In	30 AWG	12 AWG	Tin	Free Hanging (In-Line)	M3	UL94 V-0	300 V	3 mm˛	0.05 mm˛
