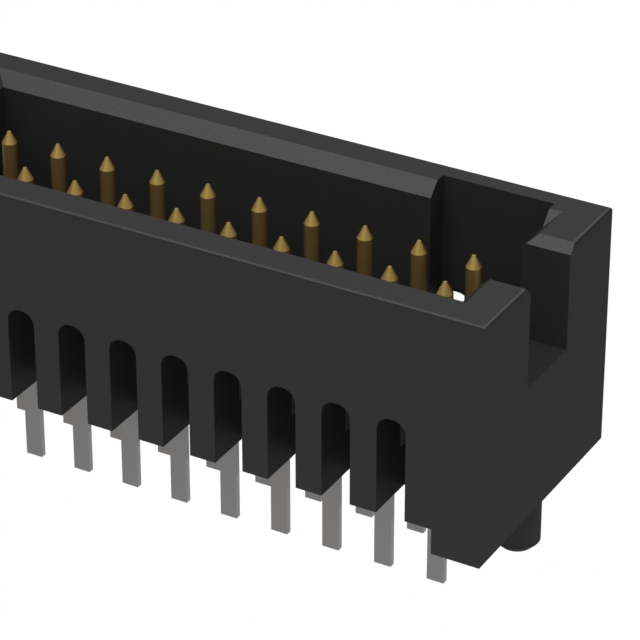

TFC-140-01-F-D-A

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

TFC-140-01-F-D-A

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFC-140-01-F-D-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	3.33 mm
Contact Length - Mating	0.131 in
Contact Length - Post [x]	0.078 in
Contact Length - Post [x]	1.98 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC, 275 VAC

TFC-140 Series

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Style	Contact Shape	Mounting Type	Insulation Color	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Voltage Rating	Contact Finish - Post	Number of Rows	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Termination	Material Flammability Rating	Contact Type	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Shrouding	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. TFC-140-32-L-D-A-K-TR	Header	-55 °C	125 °C	3.1 A	Board to Board Cable	Square	Surface Mount	Black	Push-Pull	0.139 in	3.53 mm	0.441 "	11.2 mm	275 VAC	Tin	2	Phosphor Bronze	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	Male Pin	0.05 in	1.27 mm	80	All	Shrouded - 4 Wall	Board Guide Pick and Place	10 çin	0.25 çm	Gold
Samtec Inc. TFC-140-02-F-D-A-K	Header	-55 °C	125 °C	3.1 A	Board to Board Cable	Square	Surface Mount	Black	Push-Pull	0.131 in	3.33 mm	0.226 in	5.74 mm	275 VAC	Tin	2	Phosphor Bronze	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	Male Pin	0.05 in	1.27 mm	80	All	Shrouded - 4 Wall	Board Guide Pick and Place	3 µin	0.076 µm	Gold
Samtec Inc. TFC-140-12-L-D-A-K-TR	Header	-55 °C	125 °C	3.1 A	Board to Board Cable	Square	Surface Mount	Black	Push-Pull	0.139 in	3.53 mm	0.296 in	7.52 mm	275 VAC	Tin	2	Phosphor Bronze	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	Male Pin	0.05 in	1.27 mm	80	All	Shrouded - 4 Wall	Board Guide Pick and Place	10 çin	0.25 çm	Gold
Samtec Inc. TFC-140-01-L-D	Header	-55 °C	125 °C	3.1 A	Board to Board Cable	Square	Through Hole	Black	Push-Pull	0.131 in	3.33 mm	0.22 in	5.6 mm	275 VAC	Tin	2	Phosphor Bronze	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	Male Pin	0.05 in	1.27 mm	80	All	Shrouded - 4 Wall		10 çin	0.25 çm	Gold	0.078 in	1.98 mm
Samtec Inc. TFC-140-01-F-D-A	Header	-55 °C	125 °C	3.1 A	Board to Board Cable	Square	Through Hole	Black	Push-Pull	0.131 in	3.33 mm	0.22 in	5.6 mm	275 VAC 350 VAC	Tin	2	Phosphor Bronze	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	Male Pin	0.05 in	1.27 mm	80	All	Shrouded - 4 Wall	Board Guide	3 µin	0.076 µm	Gold	0.078 in	1.98 mm
Samtec Inc. TFC-140-02-L-D-K-TR	Header	-55 °C	125 °C	3.1 A	Board to Board Cable	Square	Surface Mount	Black	Push-Pull	0.131 in	3.33 mm	0.226 in	5.74 mm	275 VAC	Tin	2	Phosphor Bronze	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	Male Pin	0.05 in	1.27 mm	80	All	Shrouded - 4 Wall	Pick and Place	10 çin	0.25 çm	Gold
Samtec Inc. TFC-140-02-L-D-K	Header	-55 °C	125 °C	3.1 A	Board to Board Cable	Square	Surface Mount	Black	Push-Pull	0.131 in	3.33 mm	0.226 in	5.74 mm	275 VAC	Tin	2	Phosphor Bronze	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	Male Pin	0.05 in	1.27 mm	80	All	Shrouded - 4 Wall	Pick and Place	10 çin	0.25 çm	Gold
Samtec Inc. TFC-140-12-F-D-A-K-TR	Header	-55 °C	125 °C	3.1 A	Board to Board Cable	Square	Surface Mount	Black	Push-Pull	0.139 in	3.53 mm	0.296 in	7.52 mm	275 VAC 350 VAC	Tin	2	Phosphor Bronze	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	Male Pin	0.05 in	1.27 mm	80	All	Shrouded - 4 Wall	Board Guide Pick and Place	3 µin	0.076 µm	Gold
Samtec Inc. TFC-140-02-F-D-A-P	Header	-55 °C	125 °C	3.1 A	Board to Board Cable	Square	Surface Mount	Black	Push-Pull	0.131 in	3.33 mm	0.226 in	5.74 mm	275 VAC	Tin	2	Phosphor Bronze	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	Male Pin	0.05 in	1.27 mm	80	All	Shrouded - 4 Wall	Board Guide Pick and Place	3 µin	0.076 µm	Gold
Samtec Inc. TFC-140-32-L-D-A	Header	-55 °C	125 °C	3.1 A	Board to Board Cable	Square	Surface Mount	Black	Push-Pull	0.139 in	3.53 mm	0.441 "	11.2 mm	275 VAC	Tin	2	Phosphor Bronze	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	Solder	UL94 V-0	Male Pin	0.05 in	1.27 mm	80	All	Shrouded - 4 Wall	Board Guide	10 çin	0.25 çm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.19
		10	$ 7.56

Description

General part information

TFC-140 Series

Connector Header Through Hole 80 position 0.050" (1.27mm)
