5329UL 0021000

Active

Belden Inc.

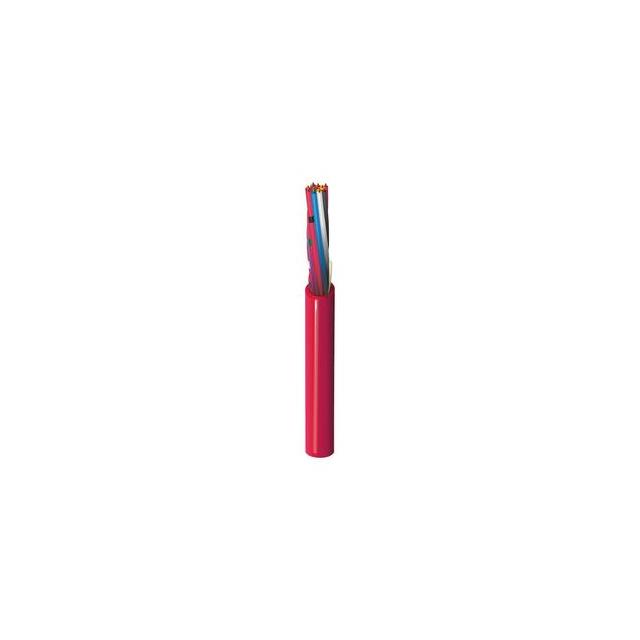

CABLE 12COND 18AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 18AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	5329UL 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	6.65 mm
Jacket (Insulation) Diameter [diameter]	0.262 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.457 mm
Jacket (Insulation) Thickness	0.018 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Ratings	UL Style FPLR
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	18 AWG

Part	Ratings	Length	Length	Conductor Material	Conductor Insulation	Voltage	Number of Conductors	Usage	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Jacket Color	Conductor Strand	Jacket (Insulation) Material
Belden Inc. 5329UL 0021000	UL Style FPLR	1000 ft	304.8 m	Copper Bare	Polypropylene (PP)	300 V	12	Alarm Safety	18 AWG	0.457 mm	0.018 in	Multi-Conductor	6.65 mm	0.262 in	Rip Cord	Red	Solid	Poly-Vinyl Chloride (PVC) Riser

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.01

General part information

12 Conductor Multi-Conductor Cable Red 18 AWG 1000.0' (304.8m)
