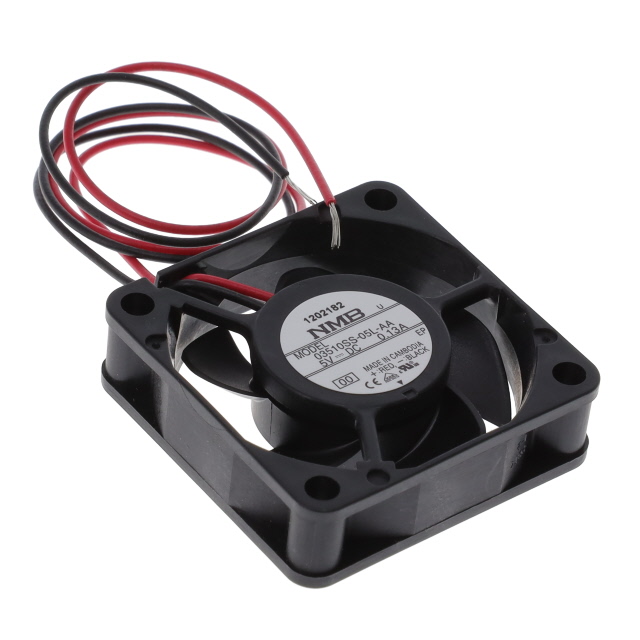

03510SS-05L-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 5 V, SQUARE, 35 MM, 10 MM, SLEEVE BEARING, 3.88 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

03510SS-05L-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 5 V, SQUARE, 35 MM, 10 MM, SLEEVE BEARING, 3.88 CFM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	03510SS-05L-AA-00	03510SS Series

Air Flow	-	0.118 - 0.16 m³/min
Air Flow	-	4.2 - 5.7 CFM
Bearing Type	Sleeve	Sleeve
Current Rating (Amps)	-	0.2 - 120 A
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart	Speed Sensor (Tach), Locked Rotor Sensor, Auto Restart
Lifetime @ Temp.	-	30000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	-	22.4 - 27 dB(A)
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-10 °C
Operating Temperature	-	-10 °C
Power (Watts)	-	600 - 840 mW
RPM	-	8000 - 10000 RPM
Size / Dimension [x]	35 mm	35 mm
Size / Dimension [z]	35 mm	35 mm
Static Pressure	-	0.23 in H2O
Static Pressure	-	57.3 Pa
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	5 V	5 - 12 V
Voltage Range	-	4.5 V
Voltage Range	-	5.5 V
Weight	-	10.43 g
Weight	-	0.023 lb
Width [y]	10 mm	10 mm

03510SS Series

DC AXIAL FAN, 5 V, SQUARE, 35 MM, 10 MM, SLEEVE BEARING, 5.65 CFM

Part	Weight	Weight	Static Pressure	Static Pressure	Fan Type	Noise	Termination	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Voltage - Rated	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Features	RPM	Width [y]	Material - Blade	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Power (Watts)
NMB TECHNOLOGIES 03510SS-05N-AT-00	10.43 g	0.023 lb	0.23 in H2O	57.3 Pa	Tubeaxial	27 dB(A)	3 Wire Leads	35 mm	35 mm	Plastic	5 V	0.2 A	4.5 V	5.5 V	Sleeve	Speed Sensor (Tach)	10000 RPM	10 mm	Plastic	0.157 m³/min	5.6 CFM	70 °C	70 °C	-10 °C	-10 °C
NMB TECHNOLOGIES 03510SS-05N-AL-00			0.23 in H2O	57.3 Pa	Tubeaxial	27 dB(A)	3 Wire Leads	35 mm	35 mm	Plastic	5 V	0.2 A	4.5 V	5.5 V	Sleeve	Auto Restart, Locked Rotor Sensor	10000 RPM	10 mm	Plastic	0.16 m³/min	5.7 CFM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs
NMB TECHNOLOGIES 03510SS-12L-AT-00					Tubeaxial		3 Wire Leads	35 mm	35 mm	Plastic	12 VDC				Sleeve	Auto Restart, Speed Sensor (Tach)		10 mm	Plastic			70 °C	70 °C	-10 °C	-10 °C	30000 Hrs
NMB TECHNOLOGIES 03510SS-05N-AA-00			0.23 in H2O	57.3 Pa	Tubeaxial	27 dB(A)	2 Wire Leads	35 mm	35 mm	Plastic	5 V	0.2 A	4.5 V	5.5 V	Sleeve	Auto Restart	10000 RPM	10 mm	Plastic	0.16 m³/min	5.7 CFM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs
NMB TECHNOLOGIES 03510SS-05M-AA-00					Tubeaxial	22.4 dB	2 Wire Leads	35 mm	35 mm	Plastic	5 V	120 mA	4.5 V	5.5 V	Sleeve	Auto Restart	8000 RPM	10 mm	Plastic	0.118 m³/min	4.2 CFM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs	600 mW
NMB TECHNOLOGIES 03510SS-12N-AA-00			0.23 in H2O	57.3 Pa	Tubeaxial	27 dB(A)	2 Wire Leads	35 mm	35 mm	Plastic	12 VDC	70 mA			Sleeve	Auto Restart	10000 RPM	10 mm	Plastic	0.16 m³/min	5.7 CFM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs	840 mW
NMB TECHNOLOGIES 03510SS-12M-AA-00					Tubeaxial	22.4 dB	2 Wire Leads	35 mm	35 mm	Plastic	12 VDC	50 mA			Sleeve	Auto Restart	8000 RPM	10 mm	Plastic	0.118 m³/min	4.2 CFM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs	600 mW
NMB TECHNOLOGIES 03510SS-12N-AT-00	10.43 g	0.023 lb	0.23 in H2O	57.3 Pa	Tubeaxial	27 dB(A)	3 Wire Leads	35 mm	35 mm	Plastic	12 VDC	70 mA			Sleeve	Speed Sensor (Tach)	10000 RPM	10 mm	Plastic	0.157 m³/min	5.6 CFM	70 °C	70 °C	-10 °C	-10 °C		840 mW
NMB TECHNOLOGIES 03510SS-12M-AL-00					Tubeaxial		3 Wire Leads	35 mm	35 mm	Plastic	12 VDC				Sleeve	Auto Restart, Locked Rotor Sensor		10 mm	Plastic			70 °C	70 °C	-10 °C	-10 °C	30000 Hrs
NMB TECHNOLOGIES 03510SS-05L-AA-00					Tubeaxial		2 Wire Leads	35 mm	35 mm	Plastic	5 V				Sleeve	Auto Restart		10 mm	Plastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5.05
		10	$ 4.96
Newark	Each	1	$ 8.06
		1080	$ 7.27
		1980	$ 7.15
		2520	$ 7.01
		5040	$ 6.89
		10080	$ 6.62

Description

General part information

03510SS Series

Fan Tubeaxial 5VDC Square - 35mm L x 35mm H Sleeve 2 Wire Leads
