1058083-1

Active

TE Connectivity AMP Connectors

CONN ADAPT SMA PLUG TO BNC JACK

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT SMA PLUG TO BNC JACK

Technical Specifications

Parameters and characteristics for this part

Specification	1058083-1

Adapter Series	BNC to SMA
Adapter Type	Plug to Jack
Body Finish	Nickel; Passivated
Body Material	Brass, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 58.39

CONN ADAPT SMA PLUG TO BNC JACK

Part	Adapter Type	Convert To (Adapter End)	Center Contact Plating	Dielectric Material	Frequency - Max [Max]	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Conversion Type	Style	Mounting Type	Fastening Type	Impedance	Convert From (Adapter End)	Adapter Series	Body Finish
TE Connectivity AMP Connectors 1058083-1	Plug to Jack	BNC Jack, Female Socket	Gold	Polytetrafluoroethylene (PTFE)	4 GHz	Brass, Stainless Steel	125 °C	-65 ░C	Beryllium Copper	Between Series	Straight	Free Hanging (In-Line)	Bayonet Lock, Threaded	50 Ohms	SMA Plug, Male Pin	BNC to SMA	Nickel; Passivated

General part information

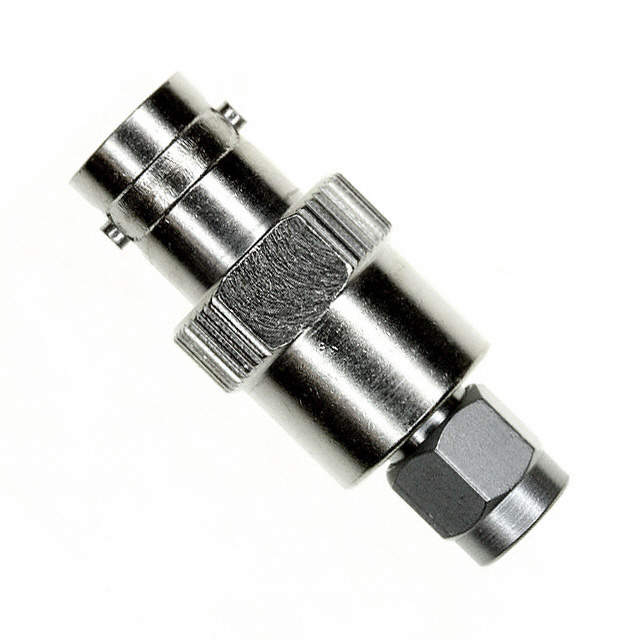

Adapter Coaxial Connector SMA Plug, Male Pin To BNC Jack, Female Socket 50 Ohms
