FA-238 16.0000MA-W5

Active

EPSON

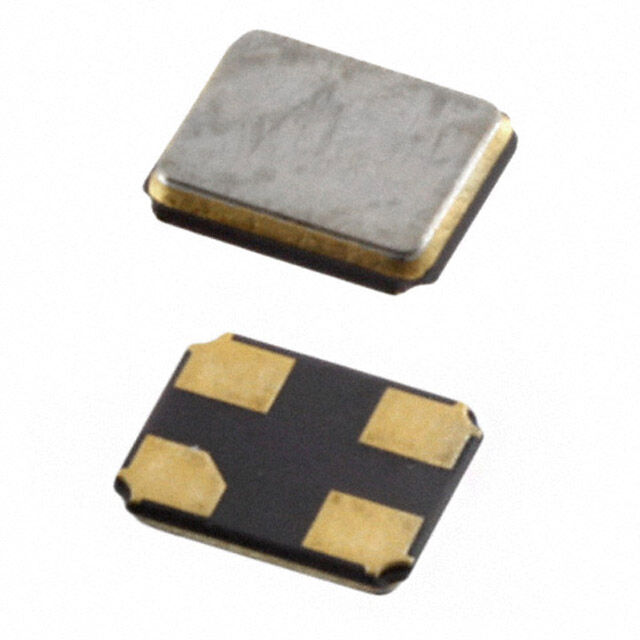

CRYSTAL 16.0000MHZ 12PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Configuration Guide

FA-238 16.0000MA-W5

Active

EPSON

CRYSTAL 16.0000MHZ 12PF SMD

Deep-Dive with AI

DocumentsDatasheet Product Configuration Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FA-238 16.0000MA-W5	FA-238 Series

ESR (Equivalent Series Resistance)	80 Ohm	40 - 80 Ohm
Frequency	16 MHz	16 - 54 MHz
Frequency Stability	30 ppm	20 - 50 ppm
Frequency Tolerance	20 ppm	15 - 50 ppm
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Load Capacitance	12 pF	7 - 20 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	2.5 mm	2.5 mm
Size / Dimension [y]	0.098 in	0.098 in
Supplier Device Package	4-SMD (3.2x2.5)	4-SMD (3.2x2.5)
Type	MHz Crystal	MHz Crystal

FA-238 Series

CRYSTAL 16.0000MHZ 12PF SMD

Part	Type	Load Capacitance	Frequency	Frequency Tolerance	Package / Case	Mounting Type	Operating Mode	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Frequency Stability
EPSON FA-238 16.0000MA-W5	MHz Crystal	12 pF	16 MHz	20 ppm	4-SMD, No Lead	Surface Mount	Fundamental	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in	4-SMD (3.2x2.5)	85 °C	-40 °C	80 Ohm	30 ppm
EPSON FA-238 24.5760MB30X-C0	MHz Crystal		24.576 MHz	30 ppm	4-SMD, No Lead	Surface Mount	Fundamental	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in		85 °C	-40 °C	60 Ohms
EPSON FA-238 52.00M-80TTYYH40RG0	MHz Crystal	8 pF	52 MHz		4-SMD, No Lead	Surface Mount	Fundamental	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in		85 °C	-40 °C
EPSON FA-238 26.00M-A0FFYYG50REB	MHz Crystal		26 MHz		4-SMD, No Lead	Surface Mount	Fundamental	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in		85 °C	-40 °C	50 Ohms
EPSON FA-238 24.0000MB-W3	MHz Crystal		24 MHz		4-SMD, No Lead	Surface Mount	Fundamental	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in		85 °C	-40 °C	60 Ohms
EPSON FA-238 25.0000MD50X-B0	MHz Crystal		25 MHz	50 ppm	4-SMD, No Lead	Surface Mount	Fundamental	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in		85 °C	-40 °C	50 Ohms
EPSON FA-238 25.0000MB30X-K3	MHz Crystal		25 MHz	30 ppm	4-SMD, No Lead	Surface Mount	Fundamental	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in		85 °C	-40 °C	50 Ohms
EPSON FA-238 25.0000M15V-W3	MHz Crystal	15 pF	25 MHz		4-SMD, No Lead	Surface Mount	Fundamental	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in		85 °C	-40 °C	50 Ohms
EPSON FA-238 25.0000MD50E-K	MHz Crystal		25 MHz	50 ppm	4-SMD, No Lead	Surface Mount	Fundamental	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in		85 °C	-40 °C	50 Ohms
EPSON FA-238 50.0000MK50X-W5	MHz Crystal		50 MHz	50 ppm	4-SMD, No Lead	Surface Mount	Fundamental	3.2 mm	2.5 mm	0.126 in	0.098 in	0.7 mm	0.028 in		85 °C	-40 °C	40 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.29

Description

General part information

FA-238 Series

16 MHz ±20ppm Crystal 12pF 80 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Product Configuration Guide

Datasheet
