K1CWBM-P07WBC0-0000

Active

ODU

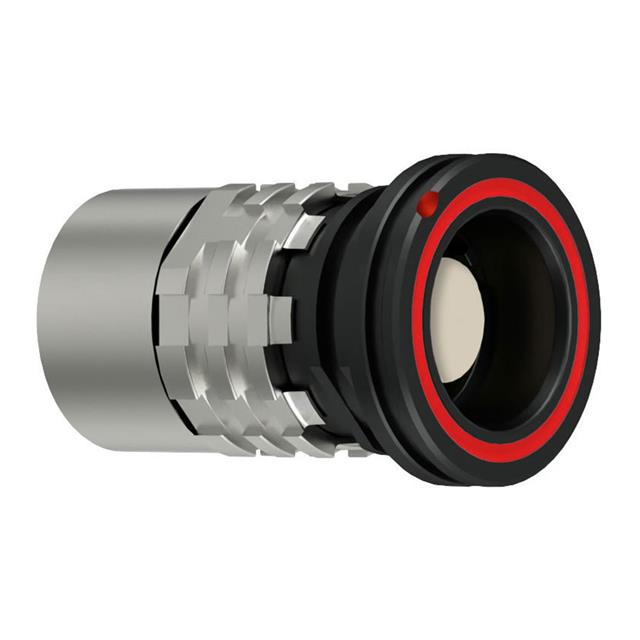

ODU AMC HD RCEPT, INLINE, STY 1,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K1CWBM-P07WBC0-0000

Active

ODU

ODU AMC HD RCEPT, INLINE, STY 1,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K1CWBM-P07WBC0-0000

Applications	Medical, Industrial, Military
Backshell Material, Plating	Ruthenium over Electroless Nickel, Brass
Cable Opening [custom]	5 mm
Cable Opening [custom]	0.197 in
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	B
Primary Material	Metal
Shell Finish	Ruthenium over Electroless Nickel
Shell Material	Brass
Shell Size - Insert	00
Shielding	Shielded

K1CWBM-P Series

Part	Material Flammability Rating	Backshell Material, Plating	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening [custom]	Cable Opening [custom]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Material	Mounting Type	Applications	Contact Material	Shell Finish	Number of Positions	Color	Contact Finish - Mating	Features	Connector Type	Insert Material	Primary Material	Fastening Type	Current Rating (Amps)
ODU K1CWBM-P07WBC0-0000	UL94 V-0	Brass Ruthenium over Electroless Nickel	B	1.27 µm	50 µin	5 mm	0.197 in	IP68 - Dust Tight Waterproof	-51 °C	125 °C	Shielded	Brass	Free Hanging (In-Line)	Industrial Medical Military	Copper Alloy	Ruthenium over Electroless Nickel	7	Black Silver	Gold	Backshell	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	Detent Lock Push-Pull
ODU K1CWBM-P02WCE0-0000	UL94 V-0	Brass Ruthenium over Electroless Nickel	B	1.27 µm	50 µin	5 mm	0.197 in	IP68 - Dust Tight Waterproof	-51 °C	125 °C	Shielded	Brass	Free Hanging (In-Line)	Industrial Medical Military	Copper Alloy	Ruthenium over Electroless Nickel	2	Black Silver	Gold	Backshell	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	Detent Lock Push-Pull	3 A
ODU K1CWBM-PU4WBM0-0000	UL94 V-0	Brass Ruthenium over Electroless Nickel	B	1.27 µm	50 µin	5 mm	0.197 in	IP68 - Dust Tight Waterproof	-51 °C	125 °C	Shielded	Brass	Free Hanging (In-Line)	Industrial Medical Military	Copper Alloy	Ruthenium over Electroless Nickel	4	Black Silver	Gold	Backshell	Receptacle Female Sockets	Polyetheretherketone (PEEK)	Metal	Detent Lock Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 116.19

Description

General part information

K1CWBM-P Series

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
