31_MCX-SMA-50-1/111_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

31_MCX-SMA-50-1/111_NE

Technical Specifications

Parameters and characteristics for this part

Specification	31_MCX-SMA-50-1/111_NE

Adapter Series	SMA to MCX
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Adapter Type	Center Contact Plating	Dielectric Material	Fastening Type	Body Material	Center Gender	Convert To (Adapter End)	Adapter Series	Mating Cycles	Mounting Type	Conversion Type	Center Contact Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Style	Frequency - Max [Max]
Huber+Suhner, Inc. 31_MCX-SMA-50-1/111_NE	Jack to Jack	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Snap-On Threaded	Beryllium Copper Brass	Female to Female	Female Socket SMA Jack	SMA to MCX	500	Free Hanging (In-Line)	Between Series	Beryllium Copper	50 Ohms	-55 °C	125 °C	Gold	Straight	6000 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

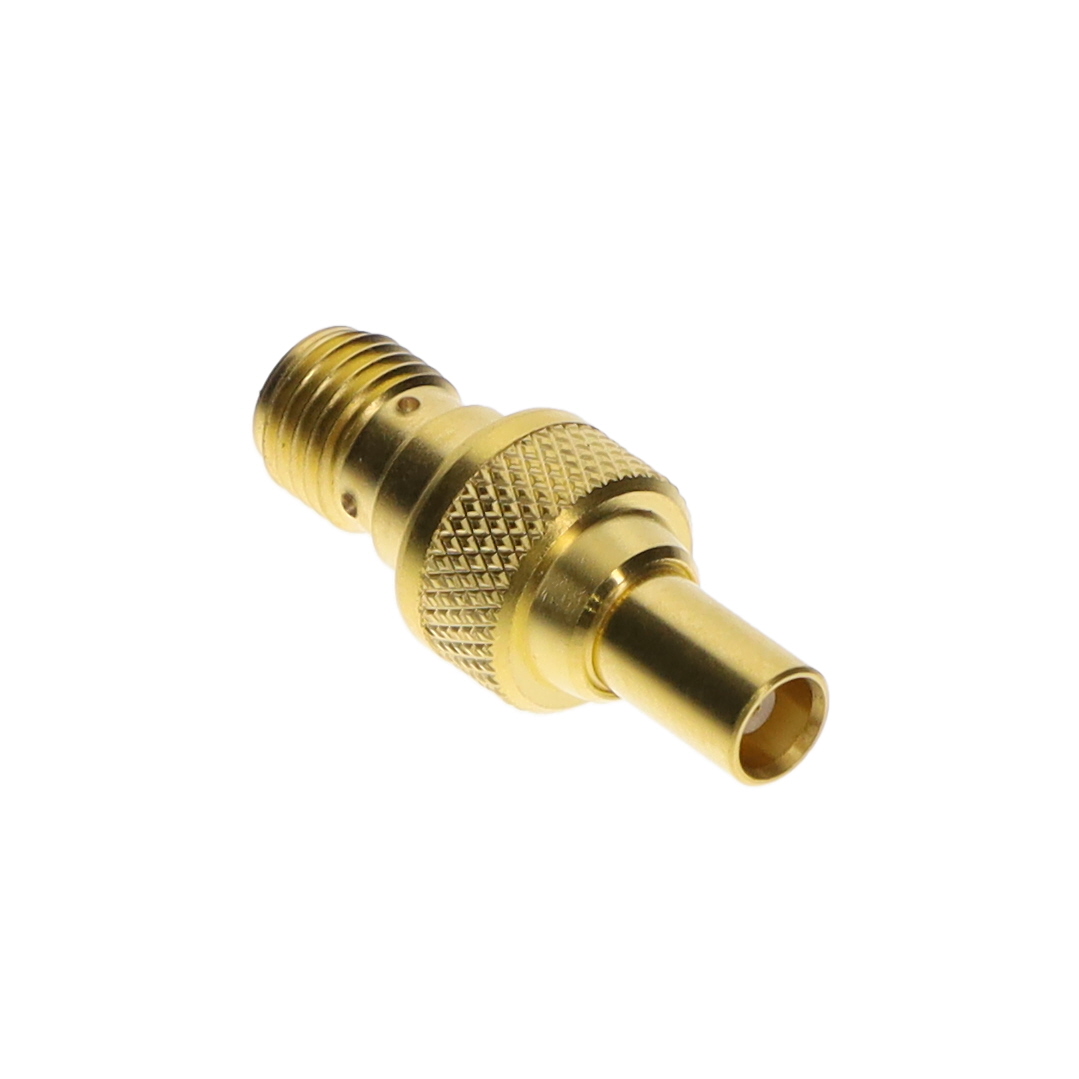

Adapter Coaxial Connector MCX Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
