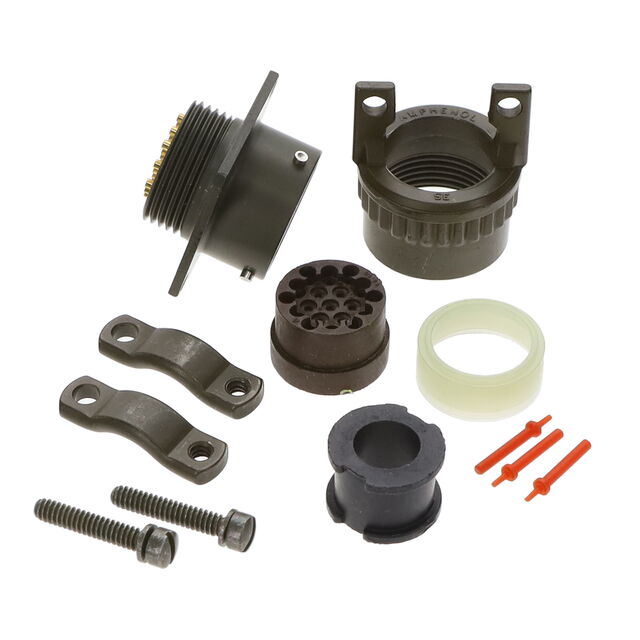

MS3110F14-19S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3110F14-19S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3110F14-19S | MS3110F14 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 19 | 19 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] [custom] | 19 | 19 |
| Shell Size - Insert [Min] [custom] | 14 | 14 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 127.06 | |
| 10 | $ 116.59 | |||
| 25 | $ 112.11 | |||
| 50 | $ 108.37 | |||
MS3110F14 Series
RECEPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Material | Shell Material | Shielding | Features | Grade | Primary Material | Insert Material | Connector Type | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Number of Positions | Color | Current Rating (Amps) | Contact Finish - Mating | Ingress Protection | Shell Finish | Applications | Orientation | Mounting Feature | Qualification | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3110F14-5S | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3110F14-15S | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3110F14-18S | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3110F14-19S | -55 °C | 125 °C | Bayonet Lock | Copper Alloy | Aluminum | Unshielded | Backshell, Cable Clamp | Military | Metal | Neoprene | Receptacle, Female Sockets | 19 | 14 | 19 | Olive Drab | 7.5 A | Gold | Environment Resistant | Olive Drab Chromate over Cadmium | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | N | Flange | MIL-DTL-26482 Series I | 600 VAC |
Amphenol Industrial Operations MS3110F14-15P | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3110F14-18P | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3110F14-5P | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3110F14-19P |
Description
General part information
MS3110F14 Series
19 Position Circular Connector Receptacle, Female Sockets Solder Cup
