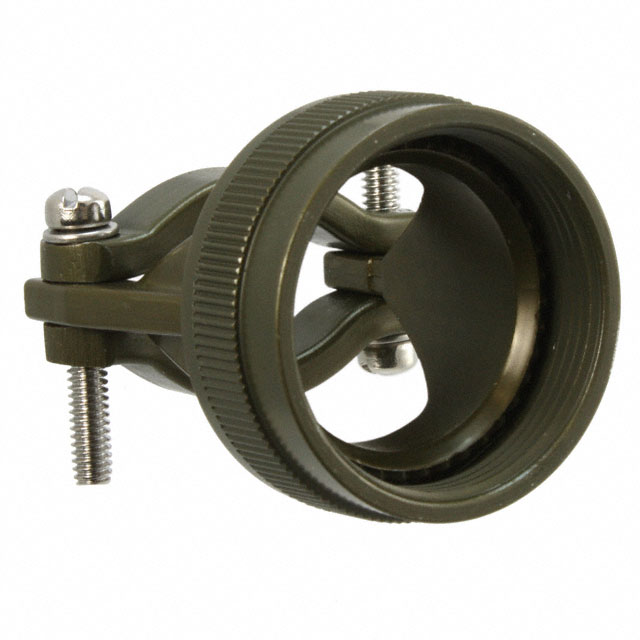

Specification	M85049/52S22W

Cable Exit Angle	180 °
Cable Opening (Max)	0.956 in
Cable Opening (Min)	0.644 in
Color	Olive Drab
Diameter - Outside	1.76 in
Features	Self-Locking, Clamp Screws
For Use With/Related Products	MIL-DTL-83723 Series III, MIL-DTL-5015, MIL-DTL-26482 Series II
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	22
Shell Size - Insert	22
Shielding	Unshielded
Type	Cable Clamp

AS85049 Series

Part	Shielding	Material	Plating	Shell Size - Insert	Diameter - Outside	Cable Exit Angle	Features	Ingress Protection	Cable Opening (Max)	Cable Opening (Min)	For Use With/Related Products	Type	Color	Cable Opening	Thread Pitch (TPI)	Thread Size (Class)	Thread Size (Nominal)	Shell Size - Insert
McGill Microwave Systems M85049/6-57W
McGill Microwave Systems M85049/1813W02	Shielded	Aluminum Alloy	Cadmium	13 C	1 in	180 °	Clamp Screws	Environment Resistant	0.25 in	0.125 in	IV MIL-DTL-38999 Series III	Backshell Cable Clamp	Olive Drab
McGill Microwave Systems M85049/88-21W03	Unshielded	Aluminum Alloy	Cadmium	21 G	1.641 in	180 °	Self Locking					Backshell Banding	Olive Drab	0.82 in
McGill Microwave Systems M85049/52S20N
McGill Microwave Systems M85049/53-12Z	Unshielded	Aluminum Alloy	Zinc Cobalt	12 7	0.94 in	180 °					MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Cable Clamp	Black	0.5 in
McGill Microwave Systems M85049/52-1-12N		Aluminum Alloy	Electroless Nickel	12	0.86 in	180 °	Clamp Screws		0.42 in	0.29 in	III MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I	Cable Clamp	Silver		20 TPI	UNEF	0.75 in	12
McGill Microwave Systems M85049/16-11Z	Unshielded	Aluminum Alloy	Zinc Cobalt	11 B	0.98 in	90 °					IV MIL-DTL-38999 Series III	Cable Clamp	Black	0.39 in
McGill Microwave Systems M85049/52S14W	Unshielded	Aluminum Alloy	Cadmium	12 14	1.26 in	180 °	Clamp Screws Self-Locking		0.476 in	0.351 in		Cable Clamp	Olive Drab
McGill Microwave Systems M85049/51-1-10N	Unshielded	Aluminum Alloy	Electroless Nickel	10	0.734 in	90 °	Clamp Screws		0.286 in	0.187 in	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Cable Clamp	Silver					10
McGill Microwave Systems M85049/51-1-10W	Unshielded	Aluminum Alloy	Cadmium	10	0.734 in	90 °	Clamp Screws		0.286 in	0.187 in		Cable Clamp	Olive Drab					10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M85049/52S22W | Datasheet
