AS85049 Series

Catalog

EMI/RFI ENVIRONMENTAL BACKSHELL 45° 12 SHELL SIZE OLIVE DRAB CADMIUM OVER ELECTROLESS NICKEL ALUMINUM ALLOY SPIN

Part	Shielding	Material	Plating	Shell Size - Insert	Diameter - Outside	Cable Exit Angle	Features	Ingress Protection	Cable Opening (Min)	Cable Opening (Max)	For Use With/Related Products	Type	Color	Cable Opening	Thread Pitch (TPI)	Thread Size (Class)	Thread Size (Nominal)	Shell Size - Insert
McGill Microwave Systems M85049/6-57W
McGill Microwave Systems M85049/1813W02	Shielded	Aluminum Alloy	Cadmium	13 C	1 in	180 °	Clamp Screws	Environment Resistant	0.125 in	0.25 in	IV MIL-DTL-38999 Series III	Backshell Cable Clamp	Olive Drab
McGill Microwave Systems M85049/88-21W03	Unshielded	Aluminum Alloy	Cadmium	21 G	1.641 in	180 °	Self Locking					Backshell Banding	Olive Drab	0.82 in
McGill Microwave Systems M85049/52S20N
McGill Microwave Systems M85049/53-12Z	Unshielded	Aluminum Alloy	Zinc Cobalt	12 7	0.94 in	180 °					MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Cable Clamp	Black	0.5 in
McGill Microwave Systems M85049/52-1-12N		Aluminum Alloy	Electroless Nickel	12	0.86 in	180 °	Clamp Screws		0.29 in	0.42 in	III MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I	Cable Clamp	Silver		20 TPI	UNEF	0.75 in	12
McGill Microwave Systems M85049/16-11Z	Unshielded	Aluminum Alloy	Zinc Cobalt	11 B	0.98 in	90 °					IV MIL-DTL-38999 Series III	Cable Clamp	Black	0.39 in

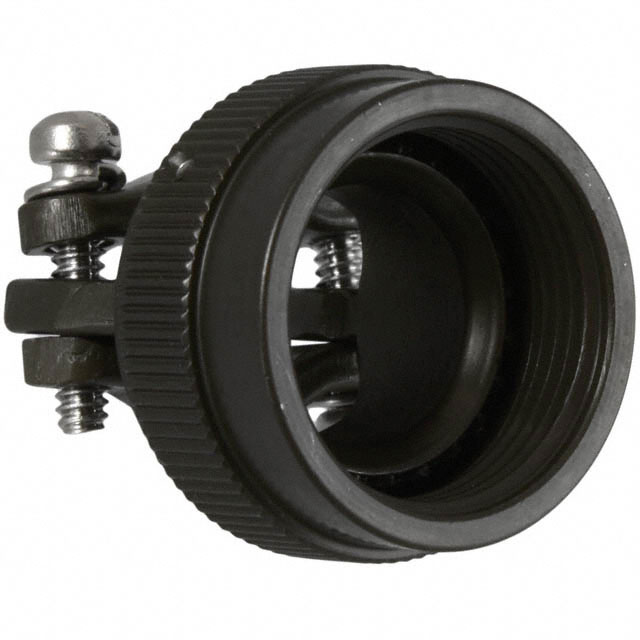

McGill Microwave Systems M85049/52S14W	Unshielded	Aluminum Alloy	Cadmium	12 14	1.26 in	180 °	Clamp Screws Self-Locking		0.351 in	0.476 in		Cable Clamp	Olive Drab
McGill Microwave Systems M85049/51-1-10N	Unshielded	Aluminum Alloy	Electroless Nickel	10	0.734 in	90 °	Clamp Screws		0.187 in	0.286 in	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Cable Clamp	Silver					10
McGill Microwave Systems M85049/51-1-10W	Unshielded	Aluminum Alloy	Cadmium	10	0.734 in	90 °	Clamp Screws		0.187 in	0.286 in		Cable Clamp	Olive Drab					10
