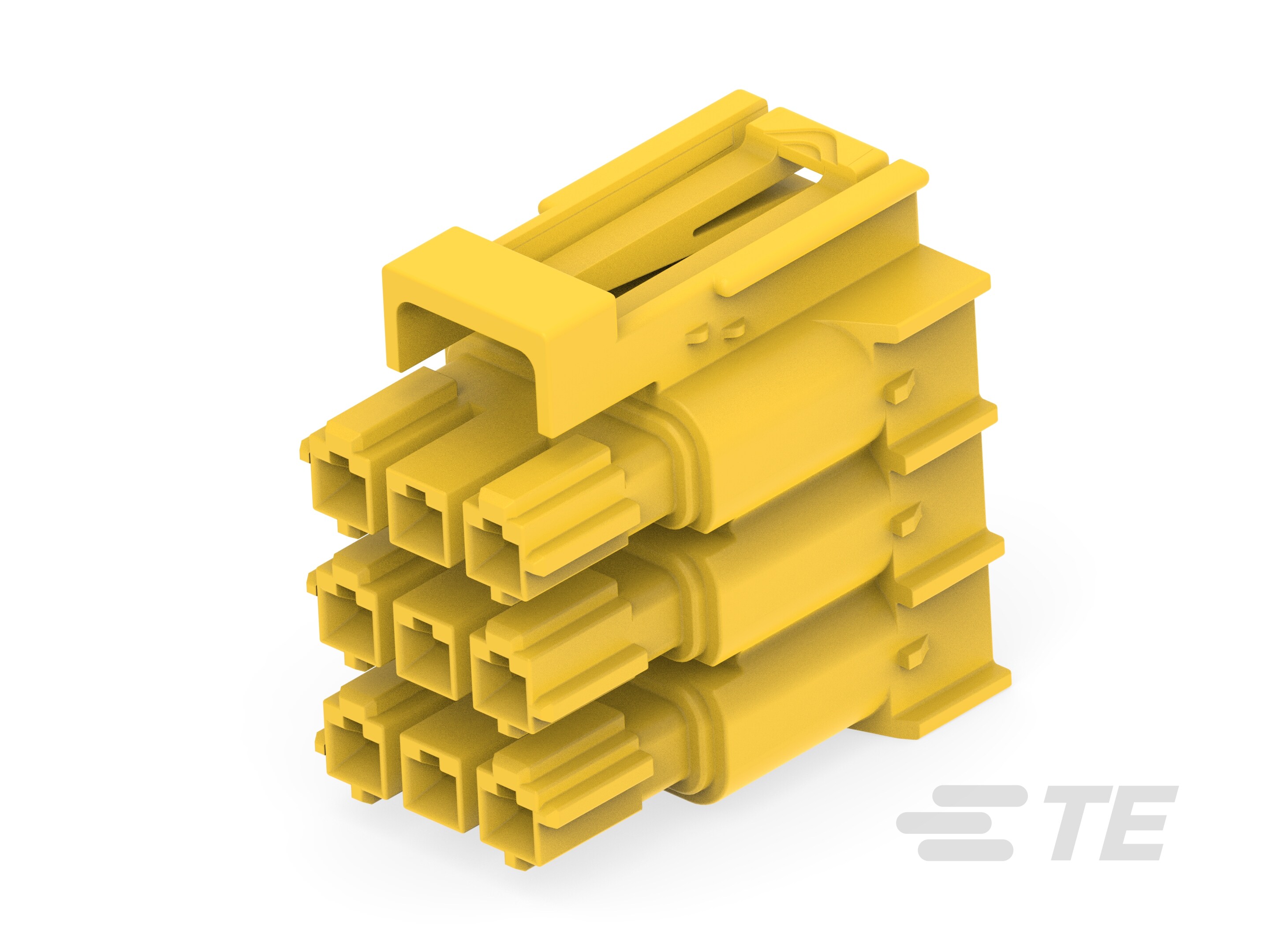

Specification	2-2370527-9

Color	Yellow
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Latch Holder
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch	0.197 in
Row Spacing	0.285 in

Power Versa-Lock 5.0 Series

...

Part	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Color	Number of Positions	Row Spacing	Contact Type	Mounting Type	Number of Rows	Insulation Material	Contact Termination	Fastening Type	Connector Type	Note	Type	Contact Finish	Pin or Socket	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
TE Connectivity AMP Connectors 1-2370527-9	0.197 in	-30 °C	130 °C	Blue	9	0.285 in	Female Socket	Free Hanging (In-Line)	3	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	Latch Holder	Plug
TE Connectivity AMP Connectors 2-2381315-4	0.197 in	-30 °C	105 °C	Yellow	4		Female Socket	Free Hanging (In-Line)	1	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	Latch Holder	Plug
TE Connectivity AMP Connectors 1-2381317-4	0.197 in	-30 °C	105 °C	Blue	4		Tab	Panel Mount Snap-In	1	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	Locking Ramp	Plug
TE Connectivity AMP Connectors 2-2378159-2		-30 °C	105 °C	Gray	2		Female Socket	Free Hanging (In-Line)	1	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Holder	Plug	Contacts Not Included
TE Connectivity AMP Connectors 2329907-1											Crimp				Power	Tin	Tab	16 AWG	14 AWG
TE Connectivity AMP Connectors 9-2378158-2	0.197 in	-30 °C	140 °C	Green	2		Tab	Panel Mount Snap-In	1	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Holder	Receptacle
TE Connectivity AMP Connectors 2329909-1											Crimp				Power	Tin	Tab	26 AWG	22 AWG
TE Connectivity AMP Connectors 1-2336229-6	0.197 in	-30 °C	140 °C	Natural	6	0.285 in	Female Socket	Free Hanging (In-Line)	2	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Lock	Plug	Contacts Not Included
TE Connectivity AMP Connectors 1-2336231-6	0.197 in	-30 °C	140 °C	Natural	6		Tab	Lock Panel Mount Twist	2	Glass Filled Polybutylene Terephthalate (PBT)	Crimp		Receptacle	Contacts Not Included
TE Connectivity AMP Connectors 6-2378159-2	0.197 in	-30 °C	140 °C	Violet	2		Female Socket	Free Hanging (In-Line)	1	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Holder	Plug
