2329907-1

Active

TE Connectivity AMP Connectors

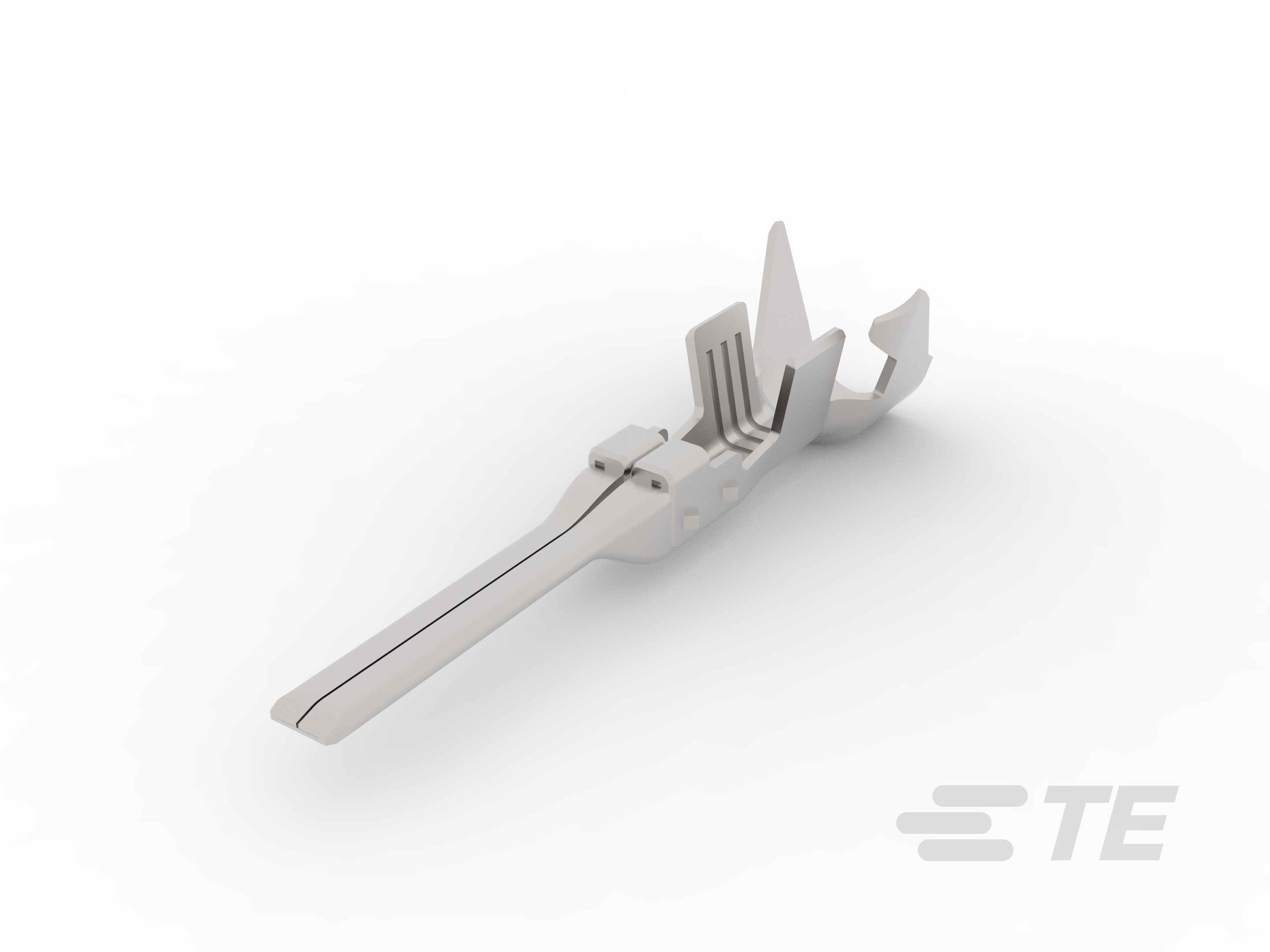

CONTACT, POWER VERSA-LOCK SERIES, TAB, CRIMP, 14 AWG, TIN PLATED CONTACTS

2329907-1

Active

TE Connectivity AMP Connectors

CONTACT, POWER VERSA-LOCK SERIES, TAB, CRIMP, 14 AWG, TIN PLATED CONTACTS

Description Specifications Series Pricing CAD Documents

Description

General part information

Power Versa-Lock 5.0 Series

Tab Contact, Tin (Sn), 600 VAC, 600 VDC, 16 – 14 AWG, 1.3 – 2 mm² Wire, Crimp, Brass, Sealable, Power, Power Versa-Lock 5.0

Technical Specifications

Parameters and characteristics for this part

Specification	2329907-1

Contact Finish	Tin
Contact Termination	Crimp
Pin or Socket	Tab
Type	Power
Wire Gauge (AWG) (Max)	16 AWG
Wire Gauge (AWG) (Min)	14 AWG

Power Versa-Lock 5.0 Series

...

Part	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Color	Number of Positions	Row Spacing	Contact Type	Mounting Type	Number of Rows	Insulation Material	Contact Termination	Fastening Type	Connector Type	Note	Type	Contact Finish	Pin or Socket	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
TE Connectivity AMP Connectors 1-2370527-9	0.197 in	-30 °C	130 °C	Blue	9	0.285 in	Female Socket	Free Hanging (In-Line)	3	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	Latch Holder	Plug
TE Connectivity AMP Connectors 2-2381315-4	0.197 in	-30 °C	105 °C	Yellow	4		Female Socket	Free Hanging (In-Line)	1	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	Latch Holder	Plug
TE Connectivity AMP Connectors 1-2381317-4	0.197 in	-30 °C	105 °C	Blue	4		Tab	Panel Mount Snap-In	1	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	Locking Ramp	Plug
TE Connectivity AMP Connectors 2-2378159-2		-30 °C	105 °C	Gray	2		Female Socket	Free Hanging (In-Line)	1	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Holder	Plug	Contacts Not Included
TE Connectivity AMP Connectors 2329907-1											Crimp				Power	Tin	Tab	16 AWG	14 AWG
TE Connectivity AMP Connectors 9-2378158-2	0.197 in	-30 °C	140 °C	Green	2		Tab	Panel Mount Snap-In	1	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Holder	Receptacle
TE Connectivity AMP Connectors 2329909-1											Crimp				Power	Tin	Tab	26 AWG	22 AWG
TE Connectivity AMP Connectors 1-2336229-6	0.197 in	-30 °C	140 °C	Natural	6	0.285 in	Female Socket	Free Hanging (In-Line)	2	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Lock	Plug	Contacts Not Included
TE Connectivity AMP Connectors 1-2336231-6	0.197 in	-30 °C	140 °C	Natural	6		Tab	Lock Panel Mount Twist	2	Glass Filled Polybutylene Terephthalate (PBT)	Crimp		Receptacle	Contacts Not Included
TE Connectivity AMP Connectors 6-2378159-2	0.197 in	-30 °C	140 °C	Violet	2		Female Socket	Free Hanging (In-Line)	1	Glass Filled Polybutylene Terephthalate (PBT)	Crimp	Latch Holder	Plug
