RT-780-3/4-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

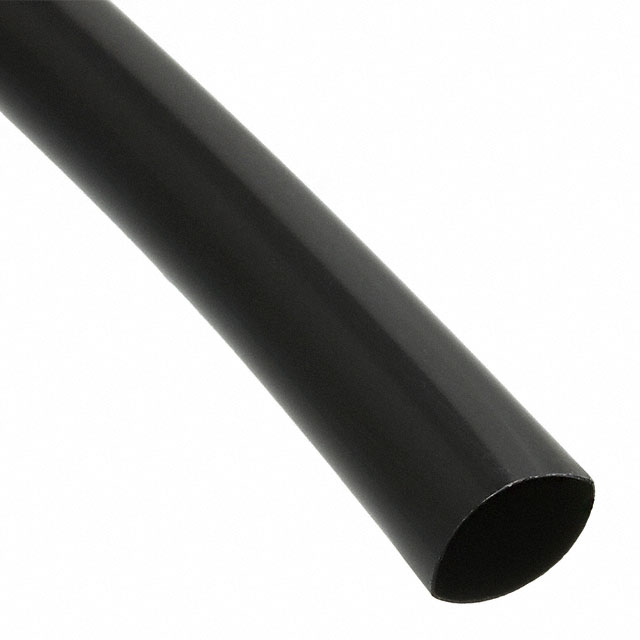

HEATSHRINK 3/4" BLACK FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRT-780 Type I Spec Sheet

RT-780-3/4-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK 3/4" BLACK FEET

Deep-Dive with AI

DocumentsRT-780 Type I Spec Sheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	500	$ 20.57

Description

General part information

RT-780 Series

Heat Shrink Tubing, Flexible 0.750" (19.05mm) 2 to 1 Black Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

RT-780 Type I Spec Sheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RT-780-3/4-0-SP	RT-780 Series

Color	Black	Black
Features	Chemical Resistant	Flame Resistant, Fluid Resistant, Chemical Resistant
Inner Diameter - Recovered	-	2.36 - 3.18 mm
Inner Diameter - Recovered	-	0.093 in
Inner Diameter - Recovered [diameter]	0.375 in	0.062 - 1 in
Inner Diameter - Recovered [diameter]	9.53 mm	1.57 - 25.4 mm
Inner Diameter - Supplied	-	0.125 - 2 in
Inner Diameter - Supplied	-	3.18 - 50.8 mm
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1500 '
Length	-	457.2 m
Material	Fluoropolymer	Fluoroelastomer (FKM), Irradiated, Fluoropolymer, Fluoroelastomer (FKM)
Operating Temperature	-	-55 °C
Operating Temperature	-	347 °F
Recovered Wall Thickness	0.81 mm	0.048 - 1.14 mm
Recovered Wall Thickness	0.032 "	0.014 - 0.045 in
Recovered Wall Thickness	-	1.22 mm
Shrink Temperature	180 °C	175 - 180 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	76.2 m	76.2 m
Spool Size	250 ft	250 ft
Type	Tubing, Flexible	Tubing, Flexible

RT-780 Series

RT-780-1/4-0-SP

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Material	Shrink Temperature	Color	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Length	Length	Spool Size	Spool Size	Length	Inner Diameter - Recovered	Recovered Wall Thickness
TE Connectivity Aerospace, Defense and Marine RT-780-1/4-0-SP	Tubing, Flexible	-55 °C	347 °F	0.125 in	3.18 mm	Fluoroelastomer (FKM), Irradiated	175 °C	Black	Chemical Resistant, Flame Resistant, Fluid Resistant	0.25 in	6.35 mm	0.018 in	0.46 mm	2 to 1
TE Connectivity Aerospace, Defense and Marine RT-780-1/8-0-SP	Tubing, Flexible			0.062 in		Fluoropolymer	180 °C	Black	Chemical Resistant	0.125 "	3.18 mm	0.014 "	0.36 mm	2 to 1	1.57 mm	1500 '	457.2 m
TE Connectivity Aerospace, Defense and Marine RT-780-3/4-0-SP	Tubing, Flexible			0.375 in		Fluoropolymer	180 °C	Black	Chemical Resistant			0.032 "	0.81 mm	2 to 1	9.53 mm			76.2 m	250 ft	Enter Number of Feet in Order Quantity
TE Connectivity Aerospace, Defense and Marine RT-780-1-1/2-3-SP	Tubing, Flexible	-55 °C	347 °F	0.75 "		Fluoroelastomer (FKM)	175 °C		Chemical Resistant, Flame Resistant, Fluid Resistant	1.5 in	38.1 mm	0.045 in	1.14 mm	2 to 1	19.05 mm
TE Connectivity Aerospace, Defense and Marine RT-780-1-0-SP	Tubing, Flexible	-55 °C	347 °F	0.5 in		Fluoroelastomer (FKM)	175 °C	Black	Chemical Resistant, Flame Resistant, Fluid Resistant	1 in	25.4 mm	0.037 in	0.94 mm	2 to 1	12.7 mm
TE Connectivity Aerospace, Defense and Marine RT-780-5/8-0-SP	Tubing, Flexible	-55 °C	347 °F	0.312 in		Fluoroelastomer (FKM), Irradiated	175 °C	Black	Chemical Resistant, Flame Resistant, Fluid Resistant	0.625 in	15.88 mm	0.026 "	0.66 mm	2 to 1	7.92 mm
TE Connectivity Aerospace, Defense and Marine RT-780-3/16-0-SP	Tubing, Flexible				2.36 mm	Fluoropolymer	180 °C	Black	Chemical Resistant	0.187 in	4.75 mm	0.016 "	0.41 mm	2 to 1							0.093 in
TE Connectivity Aerospace, Defense and Marine RT-780-1-1/4-0-SP	Tubing, Flexible	-55 °C	347 °F	0.625 in		Fluoroelastomer (FKM), Irradiated	175 °C	Black	Chemical Resistant, Flame Resistant, Fluid Resistant	1.25 in	31.75 mm	0.04 in	1.02 mm	2 to 1	15.88 mm
TE Connectivity Aerospace, Defense and Marine RT-780-1/2-0-SP	Tubing, Flexible	-55 °C	347 °F	0.25 in		Fluoroelastomer (FKM)	175 °C	Black	Chemical Resistant, Flame Resistant, Fluid Resistant	0.5 in	12.7 mm	0.022 "	0.56 mm	2 to 1	6.35 mm
TE Connectivity Aerospace, Defense and Marine RT-780-2-0-SP	Tubing, Flexible	-55 °C	347 °F	1 in		Fluoroelastomer (FKM)	175 °C	Black	Chemical Resistant, Flame Resistant, Fluid Resistant	2 in	50.8 mm		0.048 in	2 to 1	25.4 mm							1.22 mm
